TS-920RC

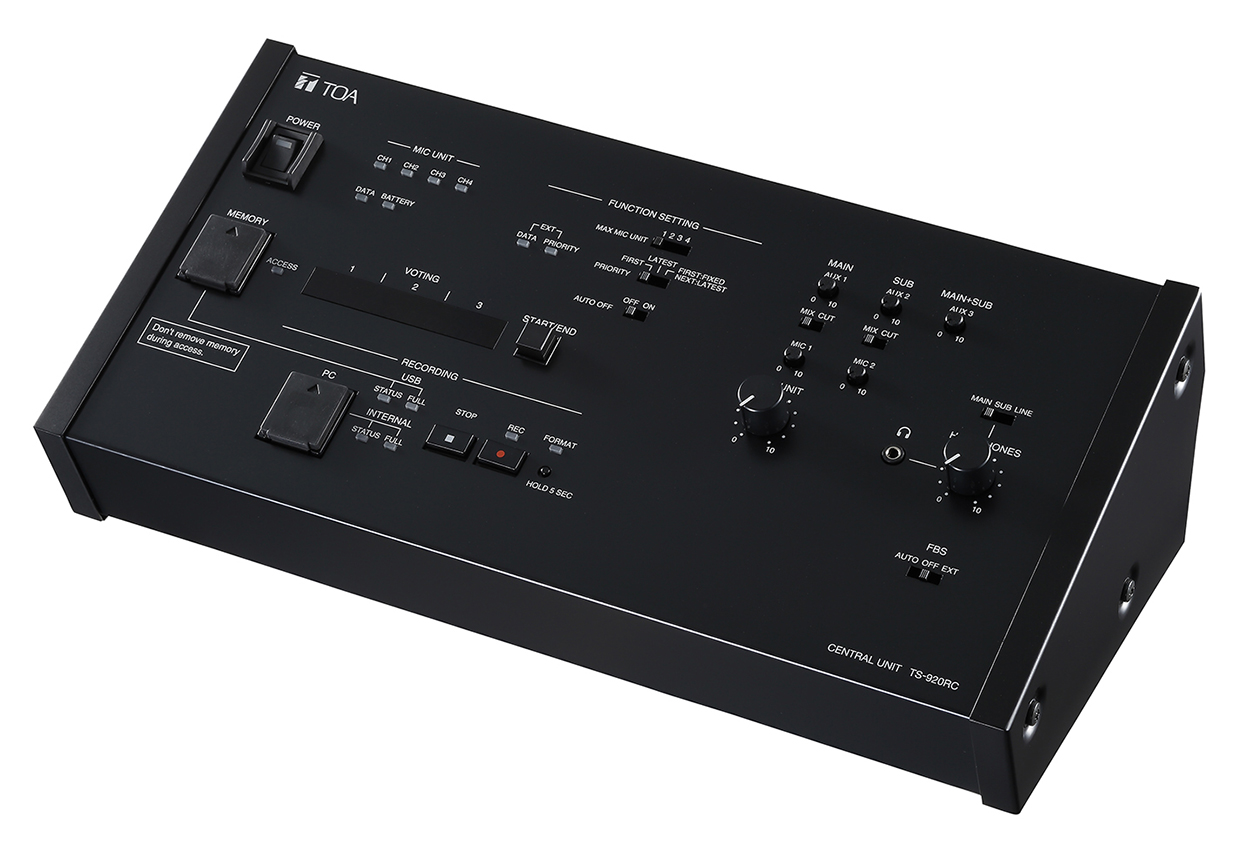

TS-920RC Conference System Central Unit

TS-920RC

 The TS-920RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter /Receiver, TS-920RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter /Receiver and Chairman/Delegate Units to be verified, and the voting function. The TS-920RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. The system can be controlled by PC ( *1 l.

(*1) Relevant control software is supplied on a custom-made basis.
to get Protocol from HERE



Request for BIM Data: https://www.sound-toa.com/rfa_form.html



 Ver. 1.1.4




  Camera Integration

QTY: Add to Request for quote Request for quote

Specifications:

(* 1) Relevant control software is supplied on a custom-made basis.

Power Source  100 - 240 V AC, 50/60 Hz ( use of the supplied AC adapter)
Power Consumption 72 W
Current Consumption Max. 3 A DC ( when 24 V DC is supplied from the accessory AC adapter)
Carrier Frequency Reception:
                 Audio channel 1: 7.35 MHz
                 Audio channel 2: 8.10 MHz
                 Audio channel 3: 8.55 MHz
                 Audio channel 4: 9.15 MHz
                Control channel: 6.45 MHz
Transmission: Base language channel: 1.95 MHz
                       Translation language channel: 2.25 MHz
Input MIC 1 (Base Language): : -60 dB ( *2) , 600 Ω, unbalanced, ¢6.3 mm phone jack ( 2P)
MIC 2 (Translation Language): : -60 dB ( *2) , 600 Ω, unbalanced, ¢6.3 mm phone jack ( 2P)
AUX 1 (Base Language):  -20 dB (*2) , 10 kΩ, unbalanced, ¢6.3 mm phone jack (2P)
AUX 2 (Translation Language):  -20 dB (*2) , 10 kΩ, unbalanced, ¢6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language):  -20 dB (*2) , 10 kΩ, unbalanced, ¢6.3 mm phone jack (2P)
Output LINE: -10 dB (*2), 10 kΩ, unbalanced, ¢6.3 mm phone jack (2P)
REC: -10 dB ( *2 ), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: ¢3.5 mm mini jack ( 3P: monaural)
Equalizer Input/Output Input: -20 dB ( *2 ), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB ( *2 ), 10 kΩ, unbalanced, RCA pin jack
Number of Connectable
Chairman/Deleqate Units		 192 units
Number of Connectable
Infrared Transmitter /Receiver Units		 Up to 4 units ( with the use of distributor, up to 16 units connectable
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)
Infrared Transmitter/Receiver I/O Terminal BNC jacks
External Control Connection Terminal D-sub connector (9P, male/USB=B selectable)
 LED indicator Voting results indicators 1-3 (7-segment LED, 3 digital), Short-circuit indicator, Audio signal
receiving indicators 1-4 CH, Data signal receiving indicator, external control priority indicator, external control communication indicator, battery indicator (flashes when a Chairman/Delegate unit's battery nears complete discharge), recording status indicator, format in-progress indicator, access indicator, internal memory status indicator, USB memory status indicator, remaining internal memory capacity warning indicator, remaining USB memory capacity warning indicator.
Record Switch Recording start button, Recording stop button, Format button
Recording Parts  USB-A (for USB memory devices) and USB Mini-B (for PCs)
Recording Function Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
                              Sampling frequency: 32 kHz, Bit rate: 128 kbps
Function Switch Number of open microphones setting switch: 1 /2/3/ 4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch:
             FIRST ( First-in-first-out priority)
             LATEST ( Last-in-first-out priority)
             FIRST: FIXED NEXT: LATEST (Priority fixed for the first unit, and last-in-                     first-out priority for all other subsequent units.)
FBS switch: AUTO/OFF /EXT
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 90% RH or less (no condensation)
Finish Top Panel: ABS resin, gray metallic, paint, semi-gloss
Weight  2.8 kg (6.17 lb)
Accessory AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable
AC cord)( *3) ··1
Option Rack mounting bracket: MB-TS920

(*2) 0 dB = 1
(*3) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32GB in capacity can be used
       There may be cases in which a USB flash drive cannot be used with the TS-920RC, depending on the drive's
       attributes or recording conditions.
(*4) Not supplied with the TS-920RC(-CN). For the usable power supply cord and AC adapter, contact your nearest
       TOA dealer.
