TS-924

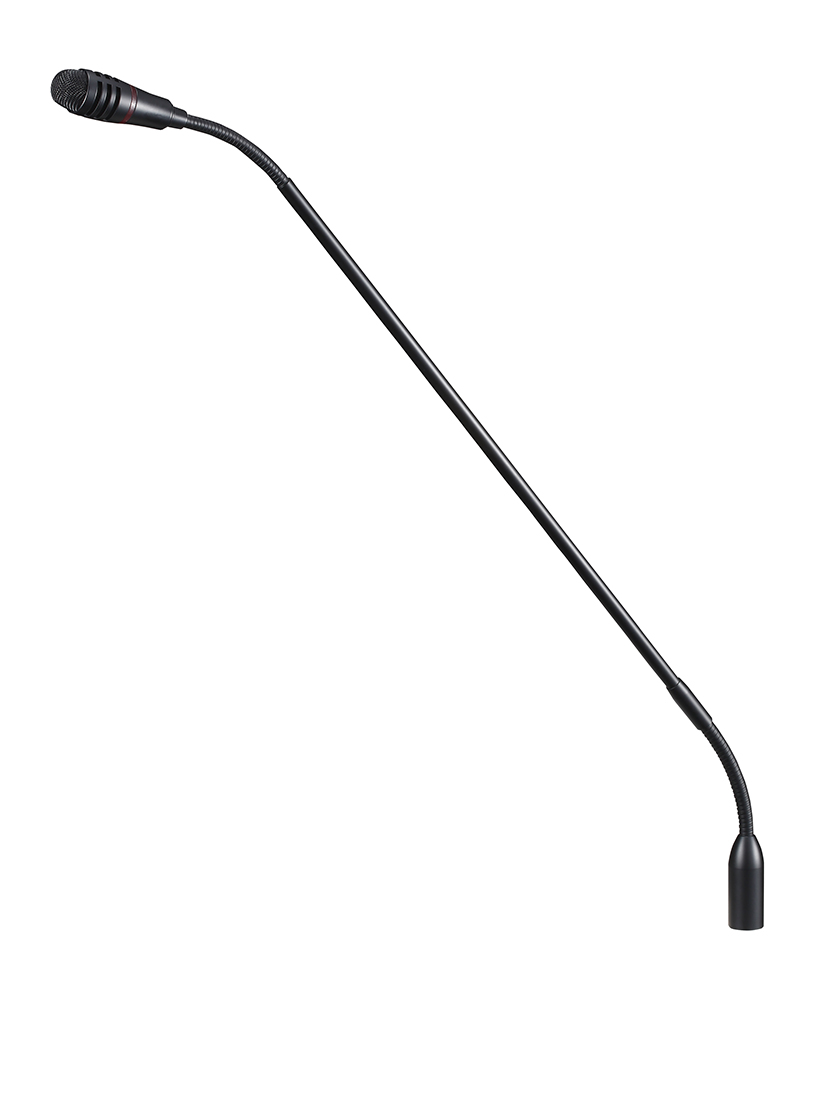

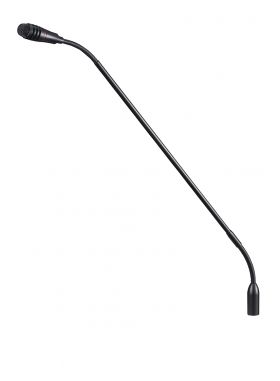

TS-924 Conference System Long Microphone Unit

TS-924

The TS-924 Microphone is a dedicated component of the Infrared Conference System's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance. Its gooseneck has two flexible parts, making it possible to adjust the microphone to an optimal position for the user.



QTY: Add to Request for quote Request for quote

Specifications

Type Electret condenser microphone
Directivity Unidirectional
Rated Impedance 1.4 kΩ
Rated Sensitivity -37 dB (1 kHz 0 dB = 1 V/Pa)
LED indicator Speech indicator (rinq type) Red
Frequency Response 100 Hz - 13 kHz
Output Connector Combined type of XLR-4-32
Flexible Part 2 parts
Operatinq Temperature 0 °c to +40 °c (32 °F to 104 °F)
Operatinq Humidity 90 %RH or less ( no condensation)
Finish Body: Aluminum, black, semi-gloss, paint
Shaft: Copper alloy, black, semi-qloss, paint
Length 620 mm (24.4")
Weight 150 q (0.33 lb)
Applicable Unit Chairman unit: TS-821, TS-921, TS-811, TS-911
Delegate unit: TS-822, TS-922, TS-812, TS-912
