HA-1010 Q

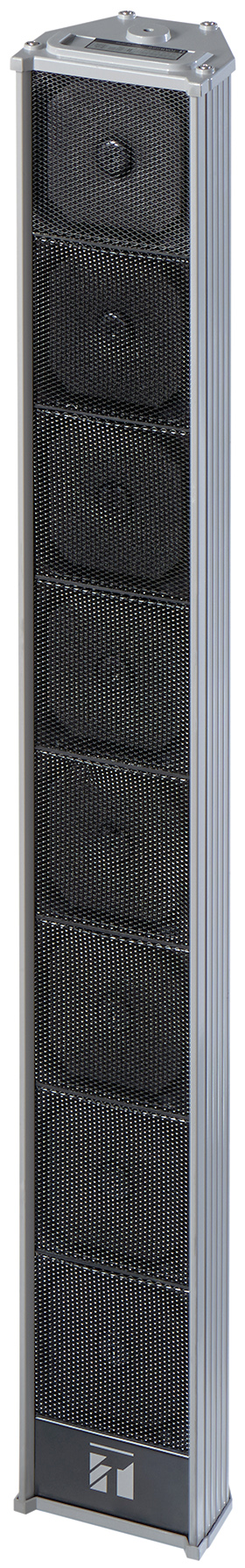

HA-1010 Long Range Outdoor Slim Array Speaker

HA-1010

The TOA Long Range Slim Array Speaker is composed of multiple horn speakers positioned in an array. It features long-range sound coverage, further than that of multiple conventional horn speakers grouped together.  Narrowly focused vertical directivity allows high volumes to be controlled at closer proximity.  The HA-1010 speaker array provides a dispersion pattern of 90° horizontally x 15° vertically.  This directivity high-frequency array horn speaker provides two 70V taps of 30 and 60 watts, allowing for proper power sizing in almost any application.



**Special Order Product



 Recorded Live Demo, Volume up!



QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 60W
Rated Impedance  170 Ω (60W), 330 Ω (30W)
Sound Pressure Level  114 dB (1W, 1m)
Max.
Sound Pressure Level 		 132 dB (60W, 1m)
Frequency Response  350 Hz - 7 kHz
Directivity Angle Horizontal: 90° (2kHz), Vertical: 15° (2kHz)
Speaker Component  Horn speaker unit x 8
Water Protection IP 66
Operating
Temperature		 -20 °C to +55 °C
Finish Case, Panel: Aluminum, salt-resistant, paint, grey
Front Grille: Aluminum, black
Dimensions 167 (W) x 1233 (H) x 140.5 (D) mm
Weight 13.5 kg
Accessories Washer (M10) x 8, Spring Washer (M10) x 4, Nut (M10) x 4

**Optional: EQ-0101A    Q - Equalizer for HA-1010 available

** special order product
