Q-SC-P620

Q-SC-P620 Powered Horn Speaker

Q-SC-P620

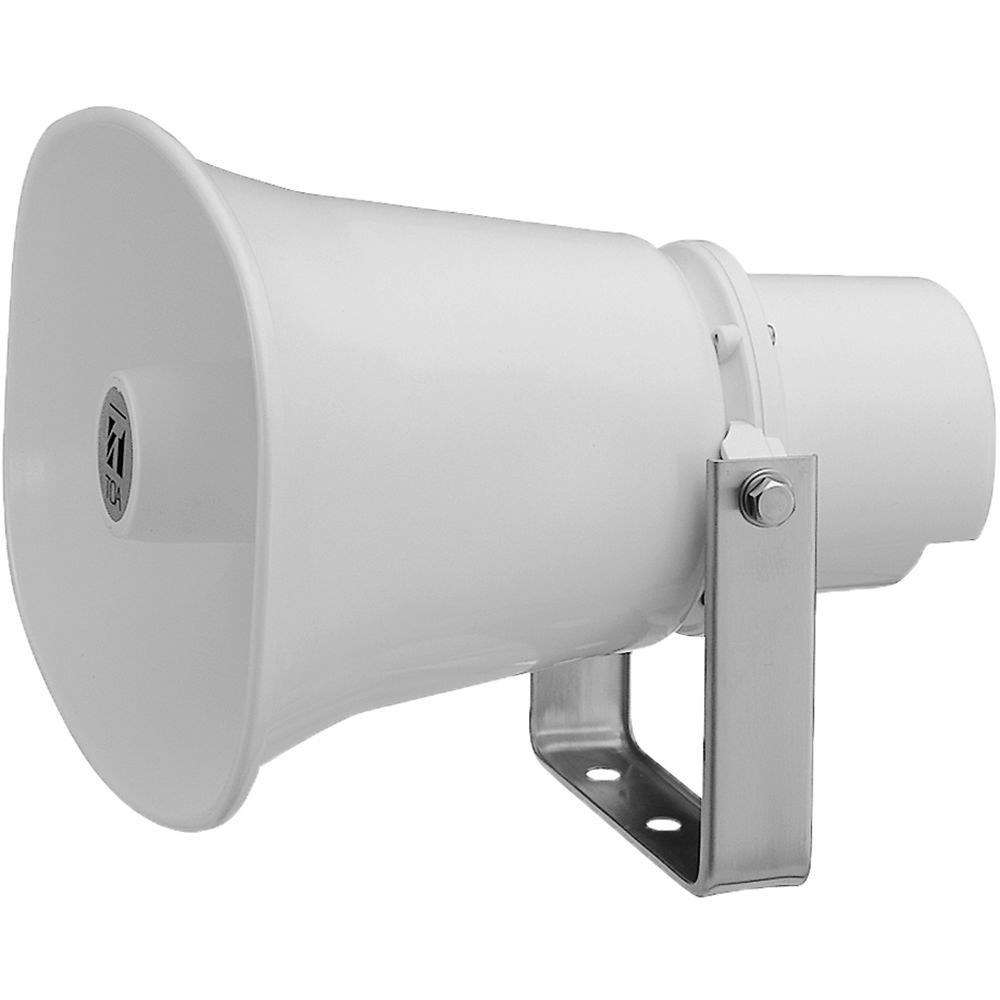

The Q-SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging for network video surveillance applications. This powered horn speaker can operate at extreme temperature. It comes with powder-coated finish and stainless steel screws to ensure its weatherproof capability. Ideal choice for indoor and outdoor applications in train stations, airports and many more.



QTY: Add to Request for quote Request for quote

Specifications                                           0 dB= 1V

Power Source 12V DC, 2A ( DC Socket "+" Type A : 5.5 x 2.1mm )
Power Consumption 15W (1.25A) at Rated output ,  25W ( 2.1 OA) at Maximum output
Input 0 dB*, 1 Ok 0, Unbalanced ( RCA pluq)
Signal Gain 8, 16, 24 or 32db (Factory pre-set to 16db)
Volume Adjustment Internal volume control (Factory pre-set to maximum position)
Sound Pressure Level 113dB ( 1 W, 1 m at 500Hz to 2.5KHz peak level) Max. SPL ( above 120dB)
Frequency Response 250 - 10,000 Hz
Operating Temperature -20'C to +55'C (must be free from dew condensation)
Dust/Water Protection IP 65
Finish

Horn Flare: HIPS resin, white (RAL9010 equivalent)
Reflector horn and case: ABS resin, white (RAL9010 equivalent)
Bracket, screws & bolts: Stainless steel
Cable Cord Length: 2m Flvinq Lead (RCA pluq) & DC socket ("+")
Dimensions 292 (W) x 230 (H) x 280 (D) mm
Weight Approx. 1.8 kg
Options AD-5000-2 (LTE24E-S2-1) AC Adapter
