PC-1860S

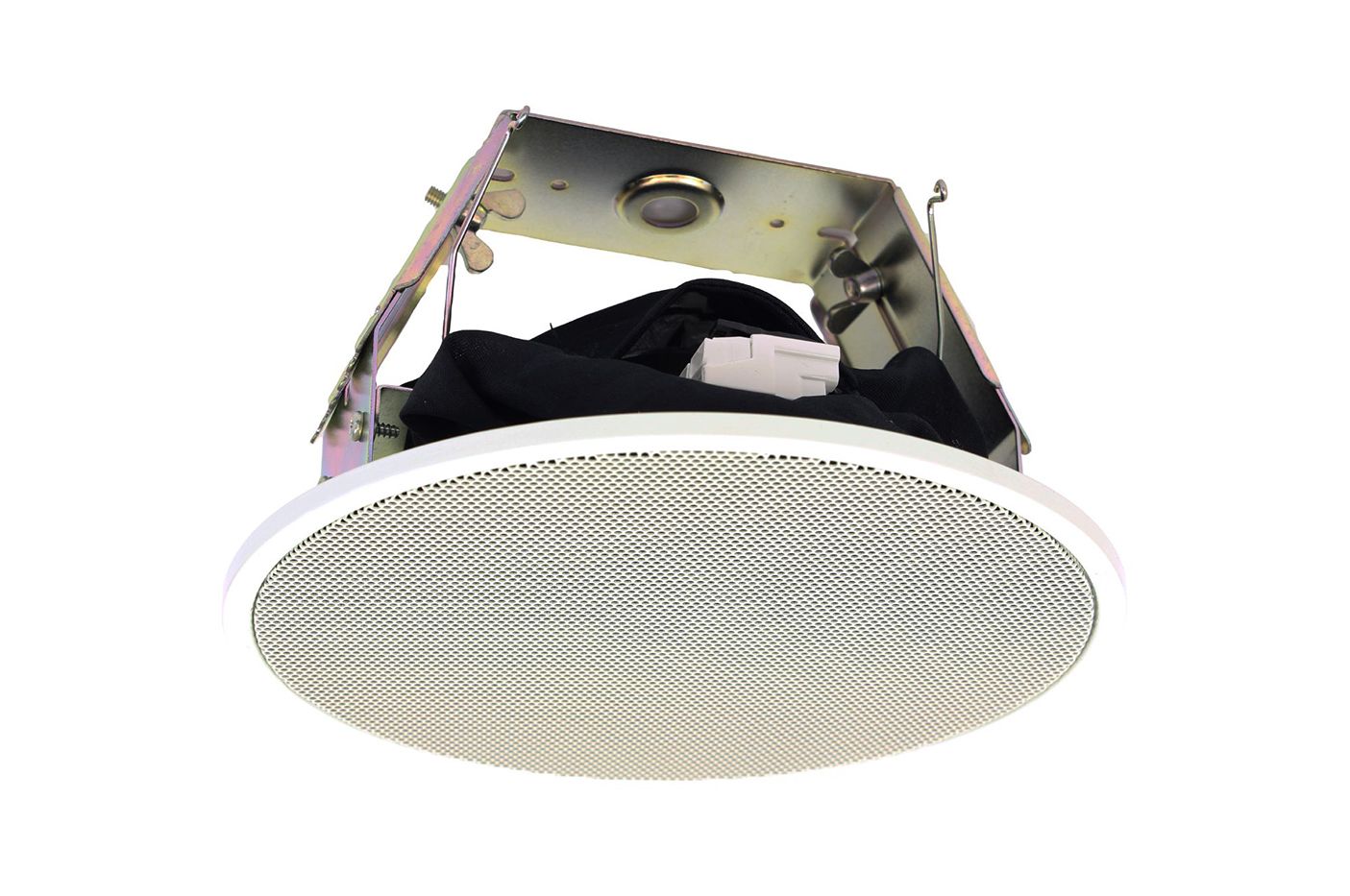

PC-1860S Ceiling Mount Speaker

PC-1860S

The PC-1860S Ceiling Mount Speaker features an mounting bracket for safety installation.
The PC-1860S is suitable for announcement and music use in high quality sound cone speaker. Speaker design that harmonize with venue's architecture and decor.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, (pink noise)
Frequency Response 80 Hz - 20 kHz (peak -20 dB
Dispersion (1 to 4k Hz avg.) 165° Horizontal   x   175° Vertical
Speaker Component 12 cm (5") cone-type
Dimensions for Fixing Hole Mounting hole: ¢150±3 mm (5.91" ±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring catch
Operatinq Temperature -10 ·c to +50 ·c (14 'F to 122 'F)
Applicable Cable Solid wire: 0.5 - 3 mm2 (AWG 20 - 12
Connection Push-in connector (bridging terminal-2 branch type)
Finish Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint Mountinq bracket: Steel plate, platinq
Dimensions φ180 x 5 (exposed section) + 101 (D) mm (7.09" x 0.2" + 3.98")
Weight 750 g (1.65 lb)
Accessory Paper pattern ... 1
