HY-RB1860 12" Round Baffle Trim Ring

HY-RB1860 AMQQV

The HY-RB1860 is the perfect solution to save time and money!

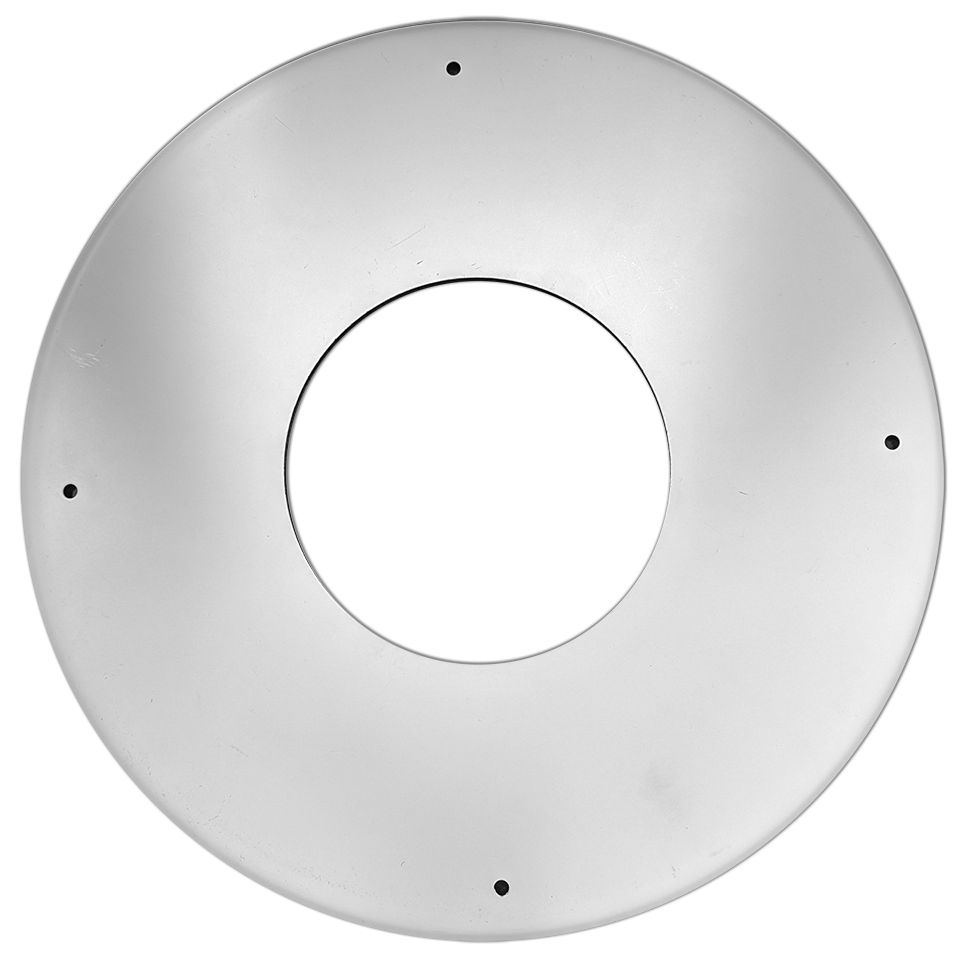

The HY-RB1860 is a 12” round baffle for 5-inch speakers. This baffle allows end-users to take advantage of replacing their 8-inch legacy speaker with a 5-inch compatible speaker without having to fill the ceiling to fit the 5-inch speaker, or to replace the ceiling tile entirely.


*The HY-RB1860 is compatible with TOA PC-1860, PC-1860S, PC-1869, PC-1869S and F-1522SC.
*In some applications, the PC-1860/PC-1869 requires TOA’s BB-1864 back box during installation.



Specifications

Dimension Dia. 326 x 5 (d) mm (12.83" x 0.2")
Opening Hole Dia. 134.6 mm (5.3”)
Weight 0.41 Kg (0.9 lbs.)
Weight Steel (white)
