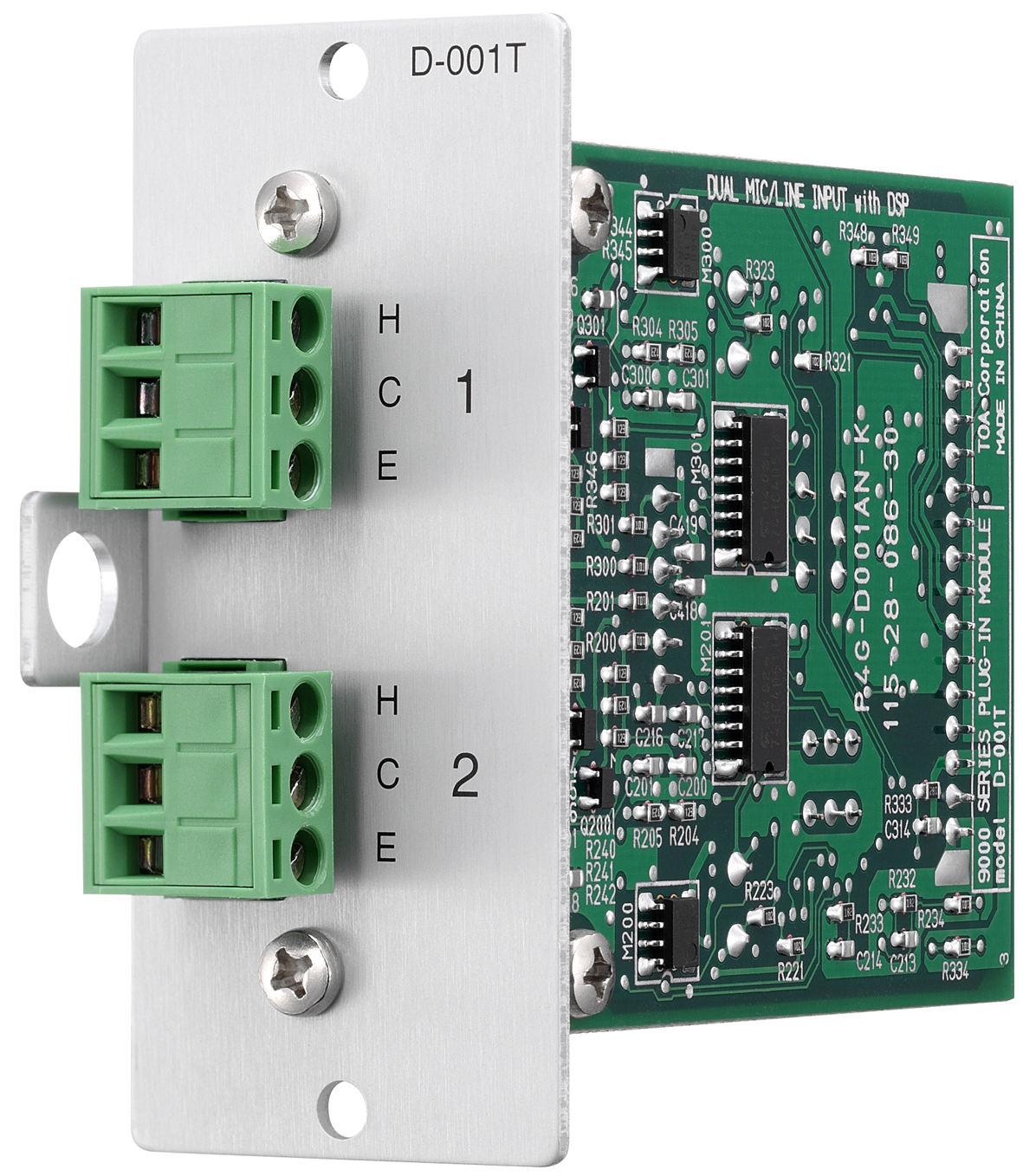

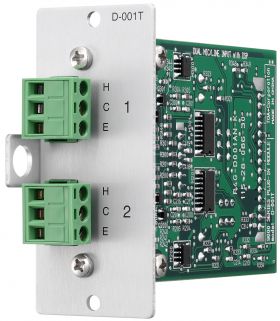

D-001T Dual Mic/Line Input Module with DSP

D-001T

The D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSOR to two inputs independently.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source +24 V DC, -24 V DC, +6 V DC
Current Consumption 60mA >>> 75mA(@+6V DC)
Input 2 channels,
3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF),
electronically-balanced, removable terminal block (3 pins)
Input Sensitivity -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Frequency Response 20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion + N 0.005% ~ 0.0008% >>> 0.01%  (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
Input Equivalent Noise Under -112 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -60 dB)
S/N Ratio 73dB >>> 70dB   (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Cross Talk Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
CMRR Over 62 dB (at 1 kHz, Input sensitivity: -60 dB)
A/D Converter 24 bit ADC
Sampling Frequency 48 kHz
Tone Control Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB,
Q: 0.3 - 5
High-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor Depth: 1 - 5
Phantom Power +24 V DC
Operating Temperature -10 ℃ to +40 ℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 84 g
Accessory Removable terminal plug (3 pins) …2, Module mounting screw …2
