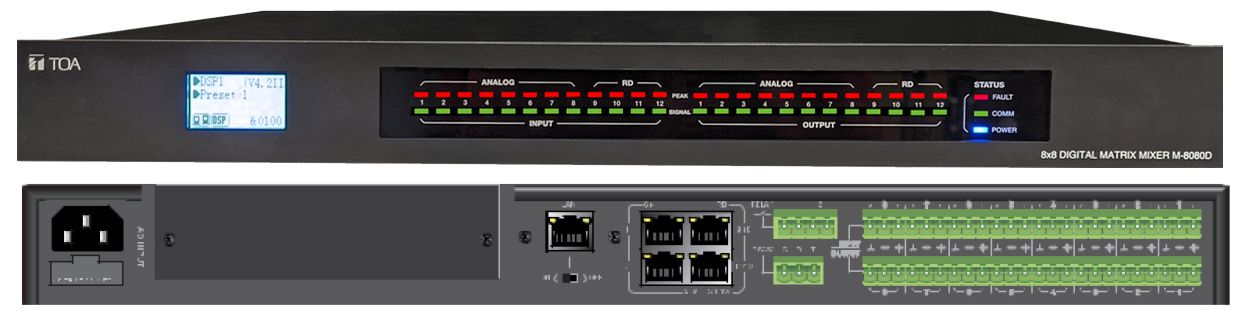

M-8080D Digital Matrix Mixer

M-8080D

The M-8080D 8x8 Digital Matrix Mixer is dedicated music, paging, discussion and zone management solutions for Commercial Audio applications. With DSP functions: EQ, Compressor, Ducker, Priority Setting, etc. M-8080D Line-up includes remote control panels, remote input, and output panel, paging microphone. Easy to use and implement. Now available with Dante module.



NOTE: Shielded Twisted Pair (STP) CAT5e or CAT6 is required when connecting the DSP to controllers for best performance.




Now with 3 and 4-series SIMPL# module suite



Update System to Enable Dante

 Firmware Update Instructions

 MUST RUN FIRST - M-8080D Firmware Update Tool

  M-8080D Controller Software Ver. 6.0  (Applicable only to 6.0)

  M-8080D Controller Software Ver. 5.3 and below

  M-800DT Dante Module Firmware Update

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 100-240 V AC, 50/60 Hz
Power  Consumption 40 W
Audio Input Input 1 - 8: - 48 to 0 dBV, 6.8kΩ, electronic balanced
                  removable terminal block (3 pins x 8)
Audio Output Output 1 - 8: 0 dBV, 1.8kΩ, Maximum output 20dB (7.75V), electronic balanced
                     removable terminal block (3 pins x 8)
Frequency Response 20 - 20, 000 Hz, ±3 dB
Total Harmonic Distortion 0.01%
S/N Ratio Over 105 dB (A weighted)
Crosstalk Over 79 dB (A weighted)
Phantom Power   +48 VDC, switchable, Inputs 1 - 8
Control input  GPI 1 - 2: no-voltage contact input, open voltage: 1.5V DC,
                short-circuit current: Under 3mA, RJ45 Connector x 2
Control output  Relay 1 - 2: withstand voltage: 24V DC, control current: Under 500mA
                   removable terminal block (4 pins)
RD port  RD 9 -12: transmits and receives AES3 digital audio plus control data
                connect remote devices such as M-82210, M-800RC, M-802RC, M-800RCT
                and M-800RM, maximum Coble Length is 100 meters, RJ45 Connector x 2
Equalizer /Filter  5 band EQ (LPF and HPF) for IN and 8 band EQ (LPF and HPF) for OUT
Parametric Equalizer: 19.7 - 20,160 Hz, range: ±18 dB, Q: 0.4 -128, Type: peak/low/high
Filter:
         High-pass Filter: 19.7 - 20,160 Hz, Type: Butterworth 6, 12, 18, 24, 30, 36, 42, 48dB;
                                    Bessel 6, 12, 18, 24, 30, 36, 42, 48dB; Linkwitz 12, 24, 36, 48dB
         Low-pass Filter: 19.7 - 20,160 Hz, Type: Butterworth 6, 12, 18, 24, 30, 36, 42, 48dB;
                                    Bessel 6, 12, 18, 24, 30, 36, 42, 48dB; Linkwitz 12, 24, 36, 48dB
Gate Threshold: -80 to +20 dB in 1 dB steps
Ratio: 1:1, 1.21, 1.3:1, 1.5:1, 1.7:1, 2.0:1, 2.2:1, 2.3:1, 2.5:1, 3.0:1, 3.5:1, 4.0:1, 4.5:1
           5.0:1, 5.5:1, 6.0:1, 6.5:1, 7.0:1, 7.5:1, 8.0:1, 8.5:1, 9.0:1, 9.5:1, 10.0:1, gate
Attack: 10 -150 ms
Release: 10 ms -1 s
Compressor Threshold: -30 to +20 dB in 1 dB steps
Ratio: 1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2.0:1, 2.2:1, 2.3:1, 2.5:1, 3.0:1, 3.5:1, 4.0:1, 4.5:1
5.0:1, 5.5:1, 6.0:1, 6.5:1, 7.0:1, 7.5:1, 8.0:1, 8.5:1, 9.0:1, 9.5:1, 10.0:1, limit
Attack 10 -150 ms
Release: 10 ms -1 s
Ducker Level: 0-15
Threshold: -80 to 0 dB in 1 dB steps
Depth -60 to 0 dB in 1 dB steps
Activation: 10 ms - 6 s
Feedback compression (FBC)  Mode: Speech / Music
Filter release: fast / mid / low
FBC type dynamic Filters / static Filters
Auto mixer  Activation: 10 ms - 6 s
Delay Delay time: 0 -1361.2916 ms
Auto mixer  LCD Screen
Displays device information: name, firmware version, ID, communication status
Indicators  Input: Analog Signal (Green ) x8, Analog Peak (Red ) x8, RD Signal (Green) x 4, RD Peak (Red ) x4 Output: Analog Signal (Green ) x8, Analog Peak (Red) x8, RD Signal (Green ) x 4, RD Peak (Red) x4 Status: Fault (Red) x1, Comm (Green) x1, Power (Blue) x1
Operating Temperature  0 °C to +40°C (32°F to 104°F)
Operating Humidity  90% RH or less (no condensation)
Finish  Panel: Aluminum, black
Case: Surface-treated steel plate, block, paint
Dimensions 483 (W) x 44.2 (H) X 259 (D) mm   (19.02" X  1.74" X 10.18")
Weight 4.18 kg (9.2 lbs.)
Accessory Power cord (2 m)... 2, CAT5 cable (2 m)... 1,
Removable terminal block (4 pins)...1, Removable terminal block (3 pins)...17
Option M-804EX, M-82210, M-800RC, M-802RC, M-800RCT, M-800RM
