M-804EX

M-804EX Port Expander

M-804EX

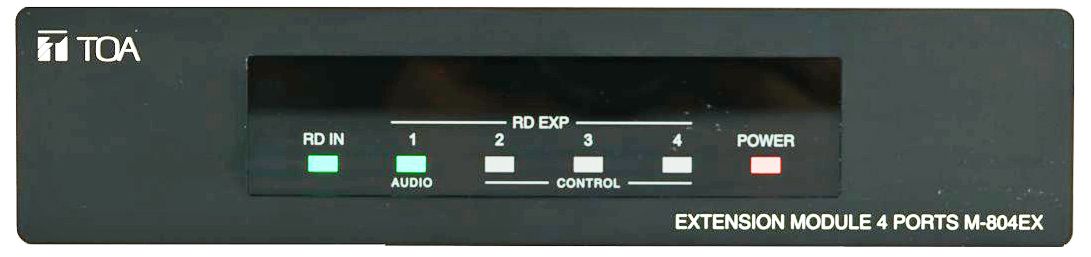

Designed for exclusive use with the M-8080D, the M-804EX Extension Module 4 Ports is a port expander featuring a star connection of the controllers.

  • 1 digital port In (from M-8080D)
  • 1 digital port Out for audio plus control
  • 3 digital port Out for control only
  • 24V DC power supply

NOTE: Shielded Twisted Pair (STP) CAT5e or CAT6 is required when connecting the DSP to controllers for best performance.





Update System to Enable Dante

 Firmware Update Instructions

 MUST RUN FIRST - M-8080D Firmware Update Tool

  M-8080D Controller Software Ver. 6.0  (Applicable only to 6.0)

  M-8080D Controller Software Ver. 5.3 and below

  M-800DT Dante Module Firmware Update

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 24V DC (powered by M-8080D or DC24V external power supply)
RD IN Transmits and receives AES3 digital audio plus control data
Connect to M-8080D, RJ45 Connector
RD EXP

Port 1: transmits and receives AES3 digital audio plus control data
            connect to M-822IO, M-800RC, M-802RC M-800RCT or M-800RM, RJ45 Connector
            maximum cable length 100 meters in total from M-8080D RD port to last controller

Port 2-4: transmits and receives control data
               connect to M-800RC, M-800RCT, RJ45 Connector
               maximum cable length 100 meters in total from M-8080D RD port to last controller
 Indicators RD in (Green) x1, RD exp audio (Green) x1, RD exp control (Green) x3, Power (Red) x1
Operating Temperature 0 °C to +40°C (32°F to 104°F)
Operating Humidity 90% RH or less (no condensation)
Finish Panel: Aluminum, black
Case: Surface-treated steel plate, black paint
Dimensions 196.2 (W) x 44.2 (H) X 133 (D) mm   (7.72" X  1.74" X 5.24")
Weight 0.92 kg  (2 lbs.)
Accessory Front cover...1, Wall mounting screws (4 x 30)...4, Box mounting screw (4 x 20)...4
Plastic anchor...4
