ER-1000A-BT

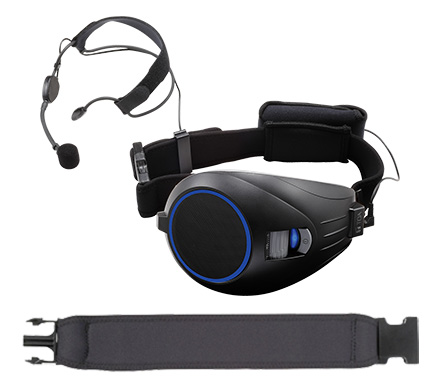

ER-1000A-BT Personal PA System with extension belt

ER-1000A-BT AMQD01

ER-1000A-BT is a wearable, easy-to-operate personal PA system that delivers powerful and clear sound from its lightweight body attached to a waistband. A slightly curved design of the main unit fits perfectly on your waist and is barely affected by your motion. This product is suited in various situations such as guided tours, sport classes, directing traffic and other security-and-safety-related applications, as well as attracting prospective customers at shows and storefronts.
*This model comes with an extension belt.
Extension Belt



   Carrying bag included ( Limited Time Offer )



QTY: Add to Request for quote Request for quote
Specification
(*1) 0 dB = 1 V
Power Source Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces*¹ (6 V DC)
Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces*¹ (4.8 V DC)
Output 6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used.
3 W (rated) and 4 W (max) when 4 AA batteries*¹ (6 V DC) are used.
Battery Life Voice operation*3:
Approx. 8 hours (when 6 or 4*¹ alkaline batteries are used)
Approx. 7 hours (when 6 or 4*¹ NiMH batteries are used)
AUX stereo input operation (music reproduction)*⁴ :
Approx. 9 hours (when 6 or 4*¹alkaline batteries are used)
Approx. 9 hours (when 6 or 4*¹ NiMH batteries are used)
Audible Range(*5) Voice operation:
Approx. 100 m (328.08 ft) (when 6 alkaline batteries or NiMH batteries are used)
Approx. 80 m (262.47 ft) (when 4*1 alkaline batteries or NiMH batteries are used)
Frequency Response 300 Hz – 14 kHz (deviation: –26 dB)
Headset Microphone Ear-on type, elrectret condenser microphone,
sensitivity: –47 dB (0 dB = 1 V/1 Pa, 1 kHz)
cord length: 1.3m (4.27ft), 3.5mm (1/8") mini-plug (monaural), with headband and windscreen.
Input MIC : –30 dB*⁵, 3 kΩ, 3.5mm (1/8") monaural mini-jack, phantom power supply.
AUX*6 : –10 dB*⁵ , 2 kΩ, 3.5mm (1/8") stereo mini-jack (supporting monaural applications*⁷)
Communication Method Bluetooth Ver.4.2
Output Power Bluetooth Class 2
Bluetooth
Operating Range		 30 feet (10 meters)
Protocol A2DP
Codec SBC
Belt Length 55 – 120 cm (1.8 – 3.94 ft)*⁸
Extension Belt 85 – 160 cm (2.8 – 5.25 ft)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Finish Front case: ABS resin, black
Rear case: ABS resin, gray
Grille: Surface-treated steel plate, black, paint
Belt: Elastic rubber, black
Dimensions 133 (W) x 96 (H) x 222 (D) mm (5.24” x 3.78” x 8.74”) (belt excluded)
Weight Main PA unit (belt included, batteries excluded): 480 g (1.06 lb)
Headset microphone: 50 g (0.11 lb)
Accessory Headset microphone (with headband and wind screen) x 1
Belt (attached to the main PA unit) x 1, Battery spacer x 2
Extension Belt x 1

* ¹ When the supplied battery spacers are used.
* ² Transmission range is measured on a quiet street with the Personal PA loaded with fresh batteries. Range varies
    depending on surrounding environmental conditions, such as battery consumption, ambient noise levels, wind direction
    and obstacles.
    Reference standard: JEITA (Japan Electronics and Information Technology Industries Association) TT-4501D
* ³ Battery life during voice output usage represents the period of time when the Personal PA is continuously used with the
    volume control set to a position that does not cause feedback.
    Reference standard: JEITA (Japan Electronics and Information Technology Industries Association) TT-4501D
* ⁴ Battery life during AUX stereo input represents a value actually measured when music is continuously reproduced with
    a commercial audio player connected to the auxiliary (AUX) input terminal. It varies depending on the connected
    external equipment’s volume output or the type of music source.
* ⁵ 0 dB = 1 V
* ⁶ Adjust the volume of the auxiliary (AUX) input at the connected external device.
* ⁷ Volume during monaural operation is smaller than during stereo operation.
* ⁸ The 120 cm (3.94 ft) length is when the Belt is stretched out to its maximum extent.
    When worn, consider a Belt length of 100 cm (3.28 ft) (of waist size when clothes are worn) as a rule-of-thumb standard.


Note: Batteries not included.
