EADV2

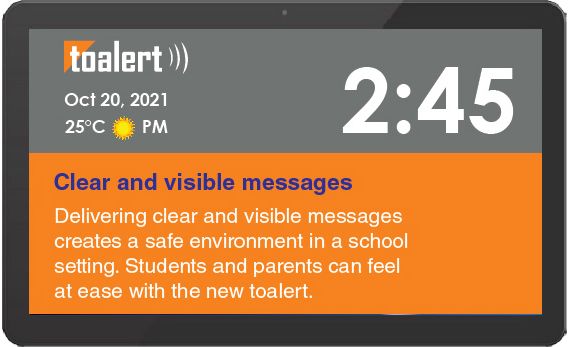

EADV2 EverAlert Dynamic Full HD Display

EADV2

The Dynamic Display is a smart 22" class HD screen with build in speakers. Its emergency communication platform is a comprehensive, innovative visual display and campus-wide notification system that supports and extends routine, institutional messaging and emergency notifications. The products has preloaded operating software and can be used in vertical or horizontal orientation.





QTY: Add to Request for quote Request for quote

This product is electronically distributed.



Specifications:

Screen Lightning  LCD with LED backlight
 Display Screen Resolution  Landscape (horizontal) or portrait (vertical)
 Mounting Formats  2 each a 2W
 USB 2.0 ports  2
 External speaker output jack  3.5MM
 Wired LAN connectivity  10/100M, RJ45 connector
 Wireless LAN connectivity  802.11b/g/n (2.4GHz)
USB provisioning  USB drive with AES encryption
 Wired provisioning  LAN/DHCP Web portal on network connection
 Input voltage to power supply  100-240VAC, 50/60Hz
 Output voltage from power supply  12VDC
 Power consumption  9.5W (average), 14.5W (maximum)
 Dimensions (device only)  20 13/16” L, 1-3/8” W, 12 9/16” H
 Weight (device only)  8 lbs











...boards should consider both auditory (PA) and visual notification systems inside and outside the school to announce a lockdown...

Read More Here (page 35)
