M-800RCTB

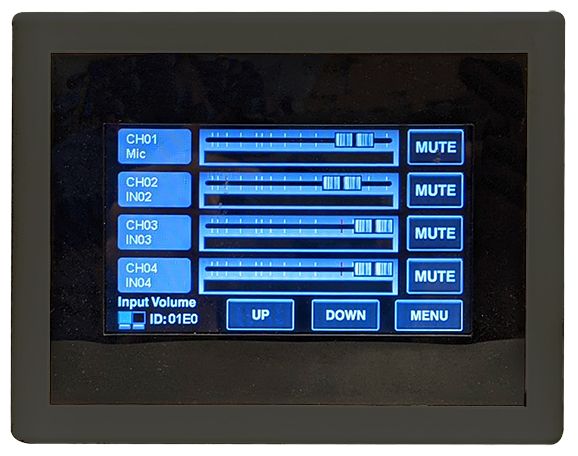

M-800RCTB Remote Control Panel with Touch Display

M-800RCTB

Designed for exclusive use with the M-8080D, the M-800RCTB Remote Audio Control Panel with touch display, can do volume adjustments, routing choices, preset choices and give system information.

NOTE: Shielded Twisted Pair (STP) CAT5e or CAT6 is required when connecting the DSP to controllers for best performance.





Update System to Enable Dante

 Firmware Update Instructions

  MUST RUN FIRST - M-8080D Firmware Update Tool

  M-8080D Controller Software Ver. 6.0  (Applicable only to 6.0)

  M-8080D Controller Software Ver. 5.3 and below

  M-800DT Dante Module Firmware Update

QTY: Add to Request for quote Request for quote

Specifications:

Power Source   24V DC (powered by M-8080D or M-804EX)
RD IN Transmits and receives AES3 digital audio plus control data
Connect to M-8080D or M-804EX, or M-800RC, M-800RCT for daisy chain, RJ45 Connector
RD EXP Transmits and receives control data
Connect to M-800RC, or M-800RCT, RJ45 Connector
Display LCD Screen
Displays device information: ID, volume, preset, communication status, system etc.
Operating Temperature 0 °C to +40°C (32°F to 104°F)
Operating Humidity 90% RH or less (no condensation)
Finish Panel: Polycarbonate + ABS, black
Dimensions 150 (W) x 115 (H) X 28 (D) mm   (5.90" X  4.53" X 1.10")
Weight 0.28 kg  (0.63 lbs.)
Accessory Wall mounting screws (4 x 30)...4, Box mounting screw (4 x 20)...4
Plastic anchor...4
