M-822IO

M-822IO-AM Audio Input Output Module

M-822IO-AM

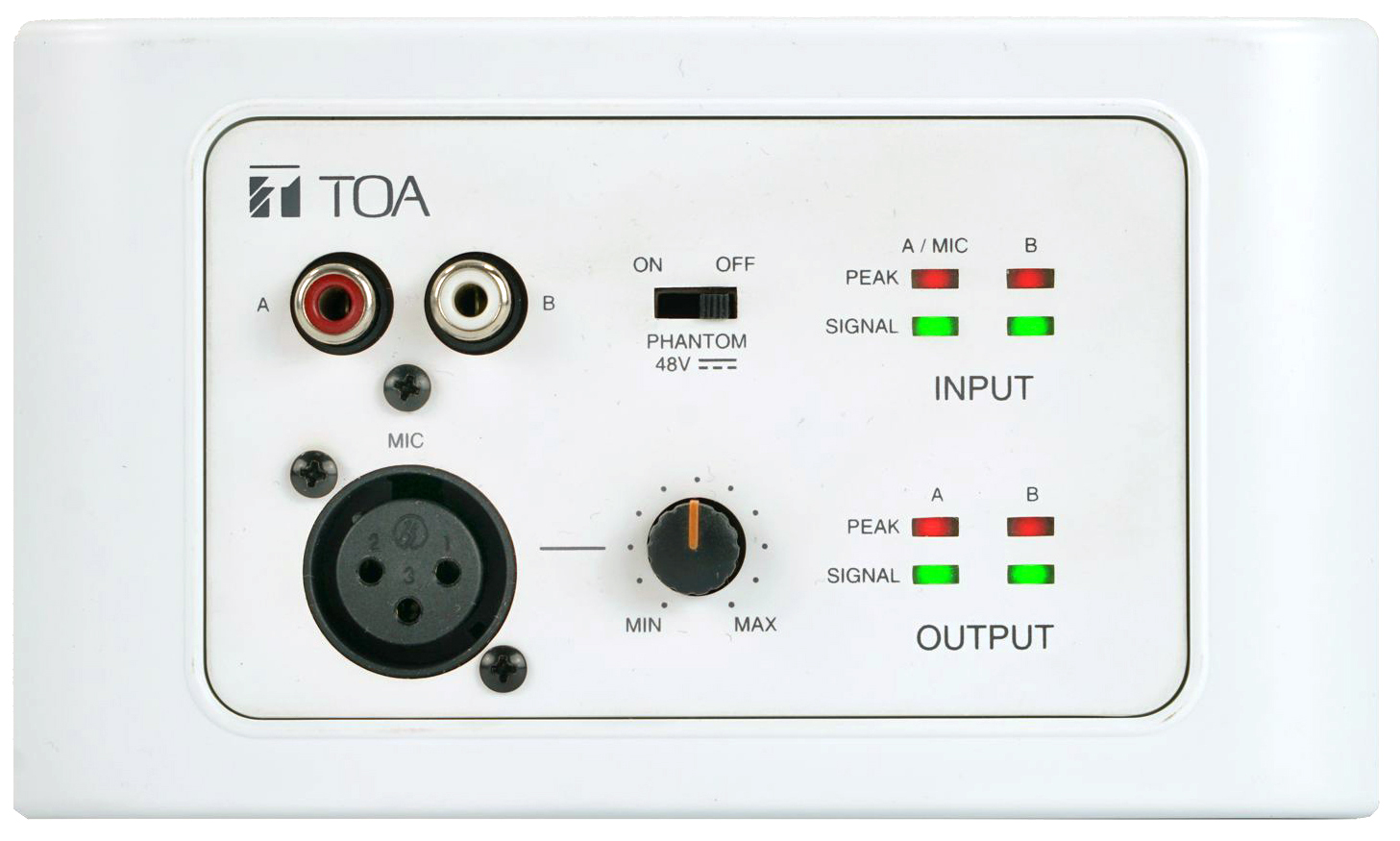

Designed for exclusive use with the M-8080D, the M-822IO Remote Audio Input Output Panel providing 2x analog IN and 2x analog OUT. The device includes build in A/D and D/A converters processing digital audio AES3 signals from and to the M-8080D.

NOTE: Shielded Twisted Pair (STP) CAT5e or CAT6 is required when connecting the DSP to controllers for best performance.

.



Update System to Enable Dante

 Firmware Update Instructions

 MUST RUN FIRST - M-8080D Firmware Update Tool

  M-8080D Controller Software Ver. 6.0  (Applicable only to 6.0)

  M-8080D Controller Software Ver. 5.3 and below

  M-800DT Dante Module Firmware Update

QTY: Add to Request for quote Request for quote

Specifications:

 Power Source   24V DC (powered by M-8080D or M-804EX)
 Audio Output Line output: 1-2: 0dBV, 1.8kΩ, Maximum output 20dBu (7.75V),
                    electronic balanced, screw terminal (3 pins x 2)
RD IN  Transmits and receives AES3 digital audio plus control data
Connect to M-8080D or M-804EX, RJ45 Connector
Frequency Response  20 - 20,000 Hz, ±3 dB
Total Harmonic Distortion   0.01%
S/N Ratio  Over 105dB (A weighted)
Crosstalk   Over 79dB (A weighted)
Control  Volume / routing
Display  LCD Screen
Displays device information: ID, volume, communication status
 Operating Temperature 0 °C to +40°C (32°F to 104°F)
Operating Humidity 90% RH or less (no condensation)
Finish Panel: Polycarbonate + ABS, white (RAL9016 or Equivalent)
Dimension 147 (W) x 86 (H) X 65 (D) mm   (5.79" X  3..39" X 2.56")
Weight 0.3 kg  (0.66 lbs.)
Accessory Front cover...1, Wall mounting screws (4 x 30)...4,
Plastic anchor...4
