CS-761W

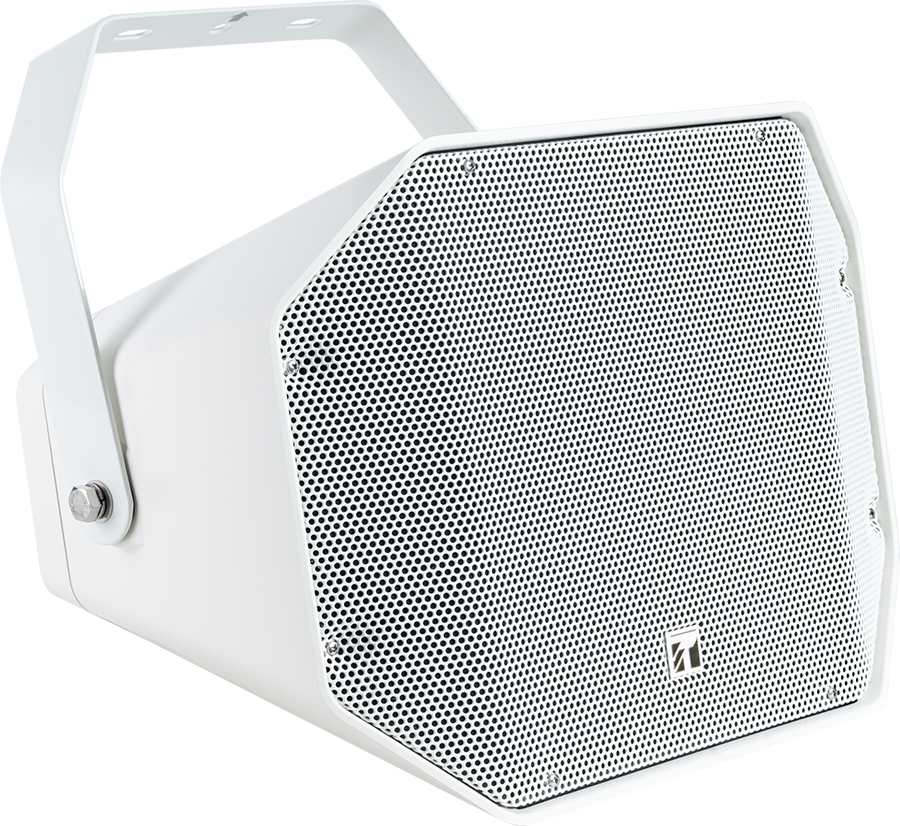

CS-761W 2-Way Coaxial Horn Speaker

CS-761W

The CS-761W is a two-way speaker featuring a coaxially positioned 16 cm ( 6.5") cone speaker and 2.5 cm ( 1") tweeter. This speaker provides high-quality sound broadcasts with excellent clarity, not only indoors, but also in semi-outdoor facilities such as multistory parking structures, and even in outdoor applications such as sports grounds and parks. It also complies with IP66 Dustproof and Waterproof Standards.



QTY: Add to Request for quote Request for quote

Specifications

Rated Input     60W
Rated Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity   100 dB (1 W, 1 m) (1 kHz - 10 kHz, pink noise)
Frequency Response   100 Hz - 20 kHz
Speaker Component   Low frequency: 16 cm ( 6") cone-type, High frequency: 2.5 cm ( 1 ") tweeter
Directivity Angle  Horizontal: 90', Vertical: 80'
Operating Temperature   -10 'C to +50 'C (14 'F to 122 'Fl
Dust/Water Protection   IP66
Connection  Speaker cable (Hot: Black, Com: White)
Finish  Enclosure: ABS resin, white ( RAL 9011 equivalent), paint
Punched net: Steel plate, white ( RAL 9011 equivalent), paint
Bracket: Stainless steel, white ( RAL 9011 equivalent), powder coating
Dimensions   388 (W) X 310 (H) X 367 (D) mm (15.28" X 12.2" X 14.45")
Weight   7.6 kg (16.75 lb)
Option  Speaker mount bracket: SP-201
Pole band: YS-60B
Speaker stand: ST-34B

Note: Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities that are not well ventilated. In such locations, the bracket may be vulnerable to corrosion, eventually allowing the speaker to fall resulting in personal injury.
