MT-251H-Q

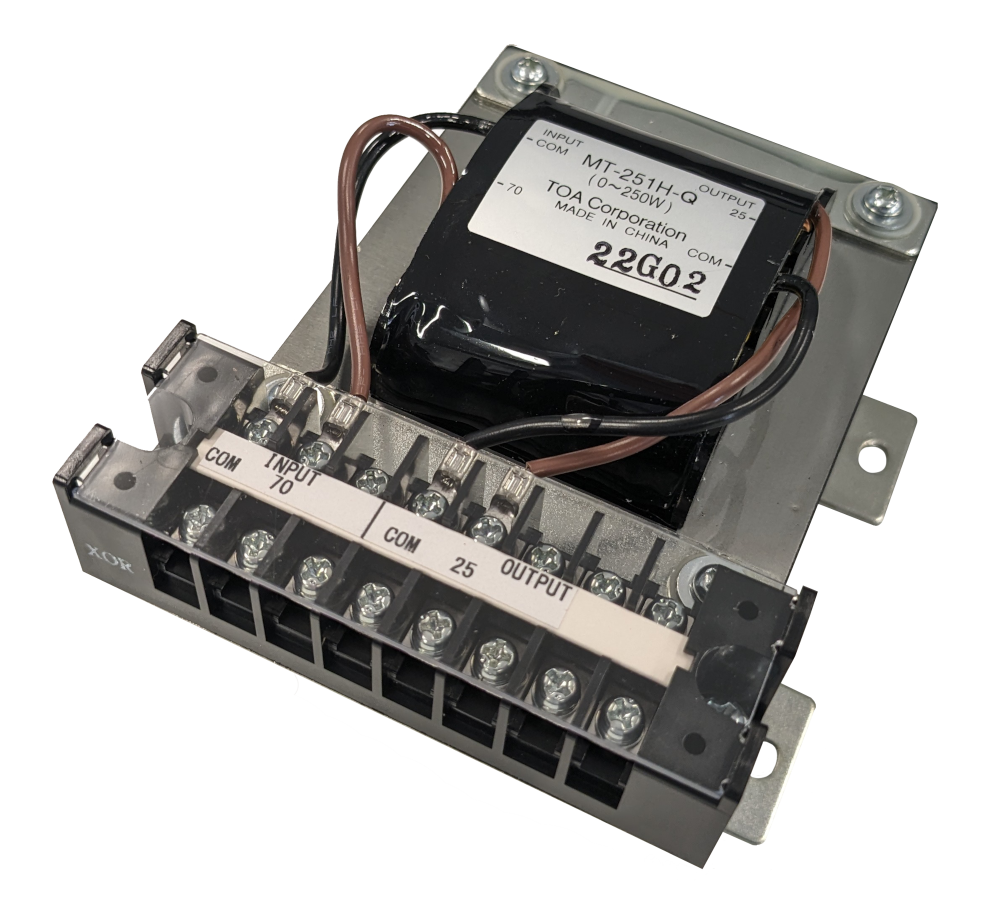

MT-251H-Q Matching Transformer

MT-251H-Q

The MT-25H-matching transformer has been update to now be now used with TOA's 70V amplifier's up to 250 watts. The transformer converts 70V signal to 25V.

QTY: Add to Request for quote Request for quote

Specifications

Capacity 0 - 250 W
Primary Side 70 V line
Secondary Side 25 V line
Frequency Response 30 - 18 KHz (+0 dB, -3 dB)
Connection Terminal M3 screw terminal, distance between barriers: 6.6 mm (0.26")
Dimensions 108 (W) × 80 (H) × 122 (D) mm (4.25" × 3.15" × 4.8")
Weight 2.3 kg (5.07 lbs)
