IP-A1PG

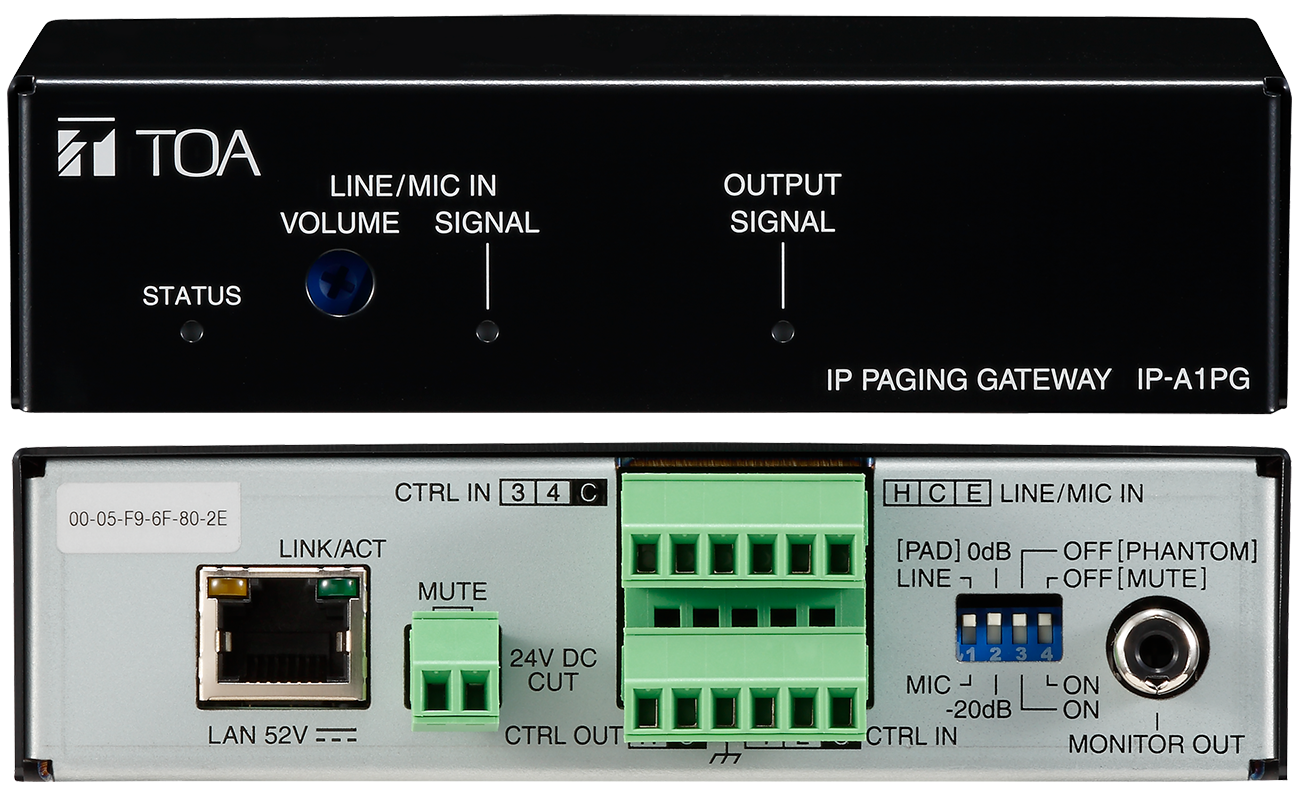

IP-A1PG IP Paging Gateway

IP-A1PG

The IP-A1PG is a PoE-powered Gateway Unit that integrates multiple IP Audio devices by converting the audio from Video Management Systems using ONVIF or voice from SIP Phone systems into multicast audio Streaming. It can also transmit built-in sound source or input audio as multicast audio streaming. Moreover, the event broadcasting triggered by control input or remote API (HTTP) as well as the command set that sends multiple HTTP commands simultaneously are also available. Part of IP-A1 series.






Teams Integration w/ IP-A1



  FreePBX SIP server configuration and setup





QTY: Add to Request for quote Request for quote
Power Consumption 2.5 W

Specifications:

Power Source PoE (IEEE802.3af Class 3)
Power Consumption 2.5 W
Audio Transmission Method Multicast Audio Streaming
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time Min. 100 ms ( *1)
Network I /F 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Network Protocol TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261)
Audio Input 1 channel, electronically-balanced, 10 kΩ
LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2))
PAD function (-20 dB (*2)), Phantom power ON/OFF (12 V DC), volume adjustable
removable terminal block (6 pins)
Monitor Output 1 channel, electronically-balanced, 600 Ω or less
Rated output: 0 dB ( *2 ), RCA pin jack
Control Input 1 channel, open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block (6 pins)
Mute Control Input 1 channel, 24 V DC cut signal, control current: 5 mA or less,
removable terminal block (2 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block (6 pins)
Indicator STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT (green),
LINK/ACT (greenl
Functions
Broadcasting Audio transmission
  Transmit internal messages by multicast audio streaming
  Transmit audio from audio input connected devices by multicast audio streaming
Audio conversion
  Convert SIP voice to multicast audio stream and transmit
  Convert ONVIF Audio Backchannel audio to multicast audio stream and transmit
Event Execute event triggered by control input
Configurable actions: Internal message broadcast, audio input broadcast,
                                   command set transmission, broadcast disable, system mute
Internal Message Max. 20 messages (Max. recording capacity: 80 MB)
Supported file format:
    WAV file: 8/16/ 44.1 / 48 kHz sampling frequency, 8/16 bit, monaural/stereo
    MP3 file: 32/ 44.1 / 48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times) or Duration (5 - 3600 sec)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Command Set 20 commands can be registered in each of 10 command sets
Clock Accuracy ±13 seconds per month
Time Adjustment Manual time setting, Time adjustment by NTP server
Power Outage Protection Period 24 hours (RTC time retention, at 40 °C (104 °F))
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 90 %RH or less (no condensation)
Finish Front case: Surface-treated steel plate, black, paint
Rear chassis: Surface-treated steel plate
Dimensions 126 (W) x 33 (H) x 80 (D) mm (4.96" x 1.3" x 3.15") (excluding projection)
Weight 390 g (0.86 lbs)
Accessory Removable terminal plug (6 pins, preinstalled on the unit)...2,
Removable terminal plug (2 pins, preinstalled on the unit) ...1, Rubber feet ...4
Mounting screw (M3 x 6)...4



( *1) When using Monitor output, assume an audio delay time.
(*2) 0 dB = 1 V
* ONVIF is a registered trademark of ONVIF Inc



Display Recommended Resolution: 1920 x 1080
OS

Windows Pro (64-bit edition)
Windows Home (64-bit edition)
Windows 11 Pro
Windows 11 Home
Required Web Browser Google Chrome
Microsoft Edge

*Windows and Microsoft Edge are registered trademarks of Microsoft Corporation in the United States
  and other countries
*Google Chrome is the trademark of Google LLC in the United States and other countries
*Other company names and products are also trademarks of individual companies
