IP-A1PC580S

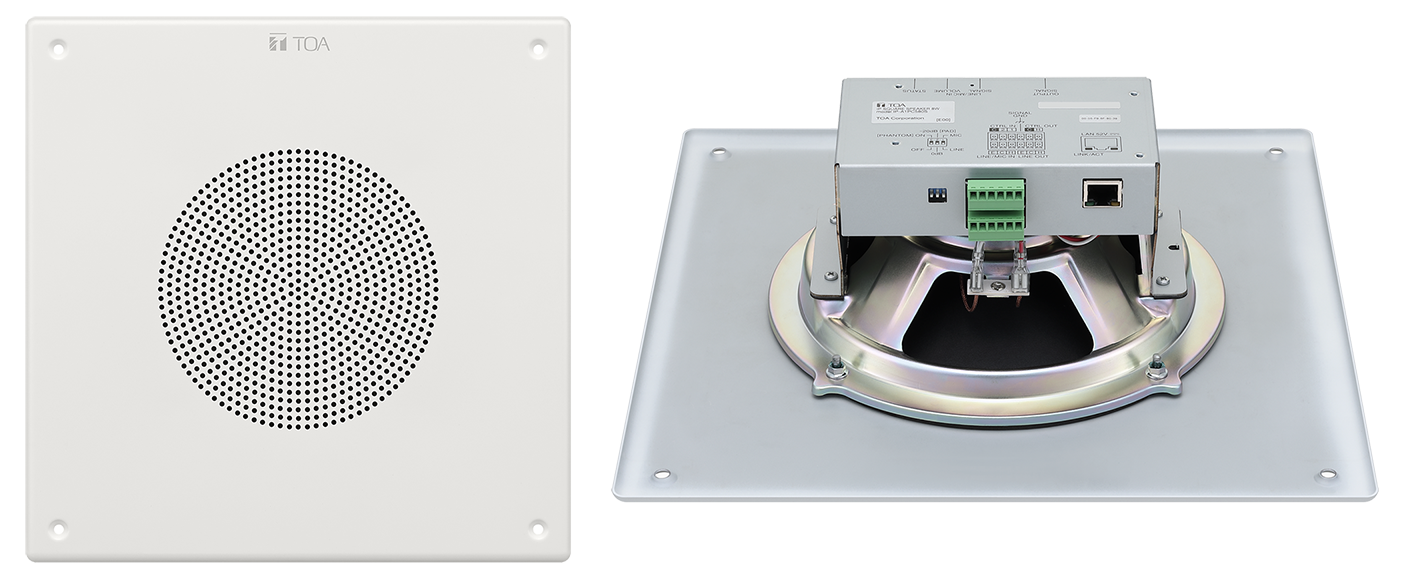

IP-A1PC580S IP Square Speaker 8W

IP-A1PC580S

The IP-A1PC580S is a PoE-powered Surface mount Speaker with a built-in 8 W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System using ONVIF. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.






Teams Integration w/ IP-A1  (IP-A1PG required)



  FreePBX SIP server configuration and setup



QTY: Add to Request for quote Request for quote

Specifications:

Power Source PoE (IEEE802.3af Class 3)
Power Consumption 12.95 W (rated output)
5 W (IEC62368-1)
Amplifier rated output 8 W
Sensitivity 97 dB (1 W, 1 m)
Maximum SPL  106 dB (8 W, 1 m)
Frequency Response  50 Hz - 16.5 kHz
Speaker Component  20cm (8") dual cone type
Audio Codec  PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting/SIP calling Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection
Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode:  PCMU, Internal Message Broadcasting Mode
Note: Each Broadcast mode can be assigned an order of priority using the Priority Setting Function
Internal Messages  Max. 20 messages (Max. recording capacity: 80 MB)
Supported file format:
    WAV file: 8/16/ 44.1 / 48 kHz sampling frequency, 8/16 bit, monaural/stereo
    MP3 file: 32/ 44.1 / 48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times) or Duration (5 - 3600 sec)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Trigger: Control input or Remote API (HTTP)
Network I/F 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Network Protocol  TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261)
Audio Input 1 channel, electronically-balanced, 10 kΩ
LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2))
PAD function (-20 dB (*1)), Phantom power ON/OFF (12 V DC), volume adjustable
removable terminal block (6 pins)
Audio Output 1 channel, electronically-balanced, 600 Ω or less
Rated Input: 0 dB (*1), removable terminal block (6 pins)
Control Input  2 channel, no-voltage make contact inputs, open voltage: 5 V DC,
short-circuit current: 2 mA or less, removable terminal block (6 pins)
Control Output  1 channel, open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block (6 pins)
Indicator  STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT (green),
LINK/ACT (green)

Clock Accuracy

 ±13 seconds per month
Time Adjustment Manual time setting, Time adjustment by NTP server
Power Outage Protection Period 24 hours (RTC time retention, at 40 °C (104 °F))
Dimensions for Fixing Hole Mounting Hole: o200 ±2mm (7.87" ±0.08")
Speaker Mounting Method Spring clamp
Operating Temperature 0 °C to + 50 °C (32 °F to 122 °F)
Operating Humidity 90 %RH or less (no condensation)
Dimensions for Fixing Hole Mounting Hole: o228.6 mm  (9")
Speaker Mounting Method Screw type
Finish

Frame: Steel Plate, white (RAL 9016 equivalent), paint
Grill: Steel net, white (RAL 9016 equivalent), paint
Dimensions

318 (W) x 318 (H) x 10/ (D) mm (12.52” x 12.52” x 4.25”)
Weight 2 kg (4.41 lbs)
Accessory Pattern paper...1, Removable terminal plug (6 pins , preinstalled on the unit)...2
Mounting Screw (5 x 38)...4
Option Q-BB-580S Square Flush-mount Back Box

 (*1) 0 dB=1 V

Note: Please do not install the product near heat insulation material or cover the product with heat insulation or acoustic absorbing materials to prevent fire risk. Please do not install the product in damp or wet locations or areas with high humidity (condensing) as it may cause damage to the product.
* ONVIF is a registered trademark of ONVIF Inc.



Computer Requirements

Display 1366 x 768 resolution or higher
OS Windows Pro (64-bit edition)
Windows Home (64-bit edition)
Windows 11 Pro
Windows 11 Home
Required Web Browser Google Chrome
Microsoft Edge

*Windows and Microsoft Edge are registered trademarks of Microsoft Corporation in the United States
  and other countries
*Google Chrome is the trademark of Google LLC in the United States and other countries
*Other company names and products are also trademarks of individual companies
