IP-A1PA12

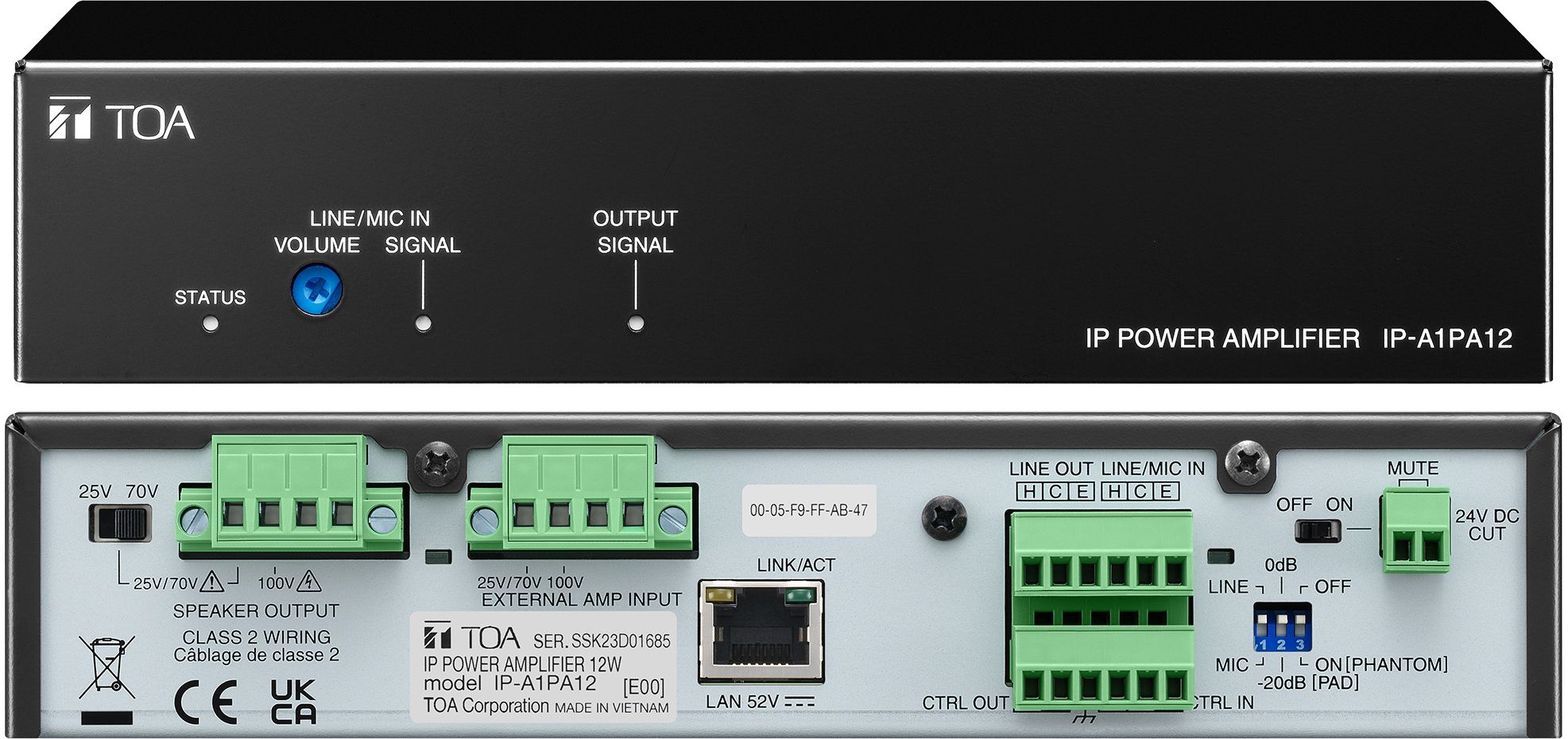

IP-A1PA12 IP Power Amplifier 12W

IP-A1PA12

The IP-A1PA12 is a compact 12 W amplifier which is designed to amplify audio signals received through network. It is equipped with 25 V, 70 V and 100 V speaker line outputs to drive wide range of high impedance speakers. With an external amplifier input capability, speakers can be driven by internal amplifier or external amplifier by switching over. It allows integrations with IP camera systems by using ONVIF protocol, paging from IP phone systems by using SIP protocol and group broadcast by multicast streaming. Max. 20 audio files can be registered, and they can be played back by control inputs or remote API (HTTP) commands.






Teams Integration w/ IP-A1

QTY: Add to Request for quote Request for quote

Specifications:

 Power Source  PoE + ( IEEE802.3at Class 4)
 Power Consumption   25 W (rated output) 6 W ( IEC62368-1)
 Amplifier Rated Output  12 W
 Frequency Response  100 Hz - 20 kHz
 Audio Codec  PCMU (G.711ul, PCMA (G.711al, G.722
 Audio Delay Time  Min. 100 ms (*1)
 Broadcasting Mode  SIP Broadcasting/SIP calling Mode: PCMU /PCMA/G. 722, P2P /SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Local Broadcasting Mode: Output from LINE/MIC IN to SPEAKER OUT
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Internal Messages  Max. 20 messages ( Max. recording capacity: 80 MB )
Supported file formats:
WAV file: 8/16/ 44.1 / 48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/ 44.1 / 48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or
Timer ( from Start time to End time )
Interval time: 0 - 99 sec, Delay time: 0 - 99 sec
Trigger: Control Input or Remote API (HTTP)
Network I /F  100BASE-TX, Auto MD I /MD 1-X, RJ45
Network Protocol  TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Speaker Output  High impedance 100 V line (830 Ω, 70 V line (420 Ω, 25 V line (52 Ω N (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins)
External Amplifier Input  High impedance 100 V line, 70 V line, 25 V line
N (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins)
Amplifier Switching Control  Relay switching
Switched to external amplifier when the following functions and operations are activated: mute control input, control input, system mute, remote API control and the unit power off.
Audio Input  1 channel, electronically-balanced, 10 kΩ
LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2))
PAD function (-20 dB (*2)), Phantom power ON/OFF (12 V DC), volume adjustable removable terminal block (6 pins)
Audio Output  1 channel, electronically-balanced, 600 Ω or less
Rated input: 0 dB (*2), removable terminal block (6 pins)
Control Input  2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
Mute Control Input  1 channel, 24 V DC cut signal, control current: 5 mA or less, removable terminal block (2 pins)
Control Output  1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins)
Indicator  STATUS (green/blue/yellow/red), LINE/MIC IN (green/red), OUTPUT (green), LINK/ACT (green)
Clock Accuracy  ±13 seconds per month
Time Adjustment  Manual time setting, Time adjustment by NTP server
Power Outage Protection Period  24 hours (RTC time retention, at +40 °C (104 °F))
 Language  English / Japanese
Operating Temperature  -30 °C to +55 °C (-22 °F to 131 °F)
Operating Humidity 90 % RH or less ( no condensation)
Finish  Front case: Surface-treated steel plate, black, paint Rear chassis: Surface-treated steel plate
Dimensions  210 (W) X 44 (H) X 81.5 (D) mm (8.27" X 1.73" X 3.21" l ( excluding projection)
 Weight  940 g (2.07 lbs)
 Accessory  Removable terminal plug ( 6 pins, preinstalled on the unit) .. ,2,
Removable terminal plug ( 4 pins, preinstalled on the unit) ... 2,
Removable terminal plug ( 2 pins, preinstalled on the unit) ... 1,
Rubber feet .. -4,
Mounting screw ( B tight 3 x 6 l ... 4
