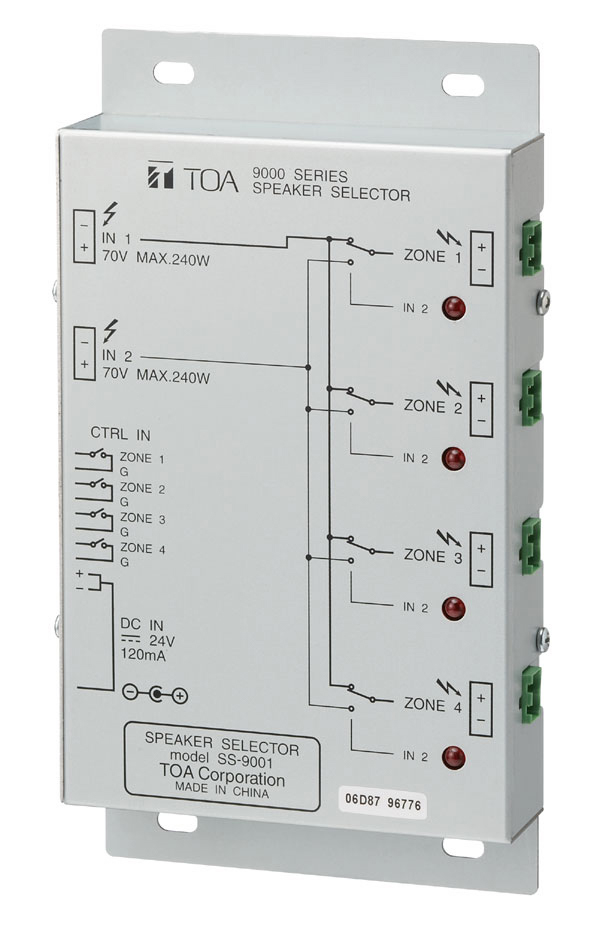

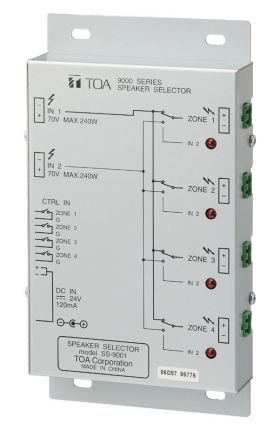

SS-9001 Speaker Selector

SS-9001

The SS-9001 is a speaker selector used in conjunction with the 9000 series amplifier. It outputs 2 input signals to 4 different zones.



QTY: Add to Request for quote Request for quote
Specification
Power Source Supplied from the optional AD-246 AC adapter or
an external 24 V DC/200 mA power supply.
Current Consumption 120 mA
Control Signal No-voltage make contact input (polarized), open voltage: 24 V DC,
short-circuit current: 3 mA
Control Power 240 W or less (70 V/100 V line)
Speaker Terminal Removable terminal block (2 pins)
Control Terminal Removable terminal block (10 pins)
Operating Temperature -10℃ to +40℃
Finish Case: Surface-treated steel plate
Dimensions 112 (W) × 197 (H) × 30 (D) mm
Weight 530 g
Accessory Removable terminal plug (2 pins) …6, Removable terminal plug (10 pins) …1,
Cord clamp …1, Mounting screw …4
Option AC adapter: AD-246
