IP-A1MP

IP-A1MP Microphone Panel

IP-A1MP

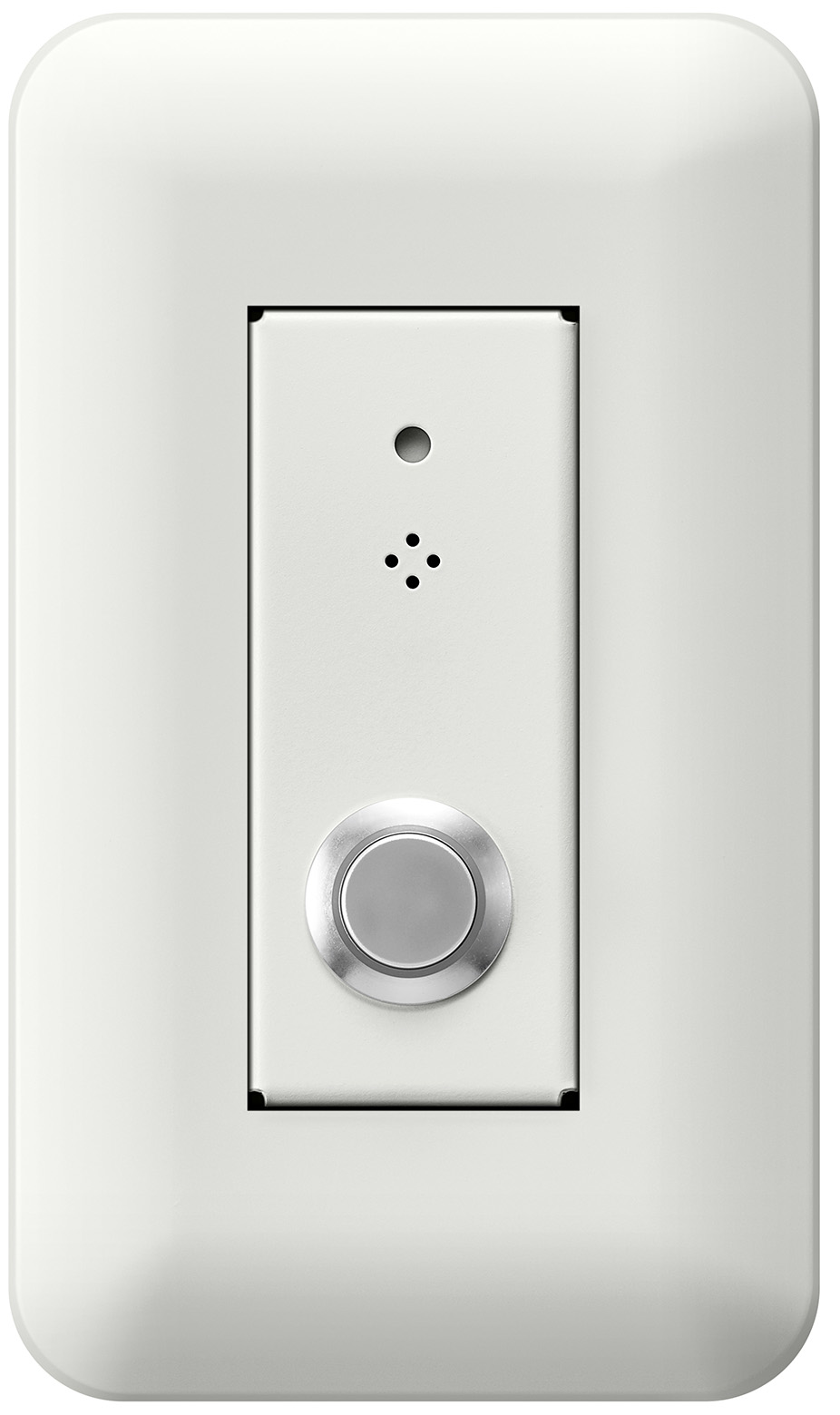

The IP-A1MP is an analog microphone panel that is equipped with an electret condenser microphone, a push button, and a status indicator. It can be used in conjunction with IP-A1AF, IP-A1PC580R or IP-1PC580S to initiate a call and establish two-way conversation.






Teams Integration w/ IP-A1

QTY: Add to Request for quote Request for quote

Specifications:

Phantom Power  9 V DC - 26 V DC
Current Consumption  8 mA or less (at 12 V DC)
Microphone Type Omni-directional electret condenser microphone
Frequency Response  100 Hz - 10 kHz
Microphone Output 0 dB (*1), 200 Ω, (Volume adjustable), electronically-balanced,
push-in terminal block
Push Switch  Momentary type (Control output circuit is closed while pressed)
Control Output No-Voltage make contact output, withstand Voltage: 30 V DC,
control current: 100 mA, push-in terminal block
Indicator Green ( Lit during control input) ( *2)
Control Input No-Voltage make contact input, open Voltage: 5 V DC,
short-circuit current: 0.2 mA or less, push-in terminal block
Cable Requirement Microphone output: Two-core shielded cable or Shielded twisted pair cable
Control input/output: Twisted pair cable
Operating Temperature  -20 °C to +55 °C (-4 °F to 131 °F)
Operating Humidity  90 % RH or less (no condensation )
Finish Front case: Surface-treated steel plate, white (RAL 9016 equivalent), semi-gloss, paint
Rear case, bracket: Surface-treated steel plate, black zinc plating
Plate: ABS resin, white (RAL 9016 equivalent), gloss
Dimension 44.6 (W) x 107 (H) x 29 (D) mm (1.76" x 4.21"  x 1.14"l (excluding projection)
Weight 170 g (0.37 lbs)
Accessory Plate ... 1,
Plate mounting screw (M3.5 X 5.5, preinstalled on the plate) ... 2,
Box mounting screw ( M4 x 35) ... 2
Applicable Box Flush-Mount Box: YC-801
Wall-Mount Box: YC-802

(*1) 0 dB = 1 V
(*2) Lights only when phantom power is supplied.
