IR-802T

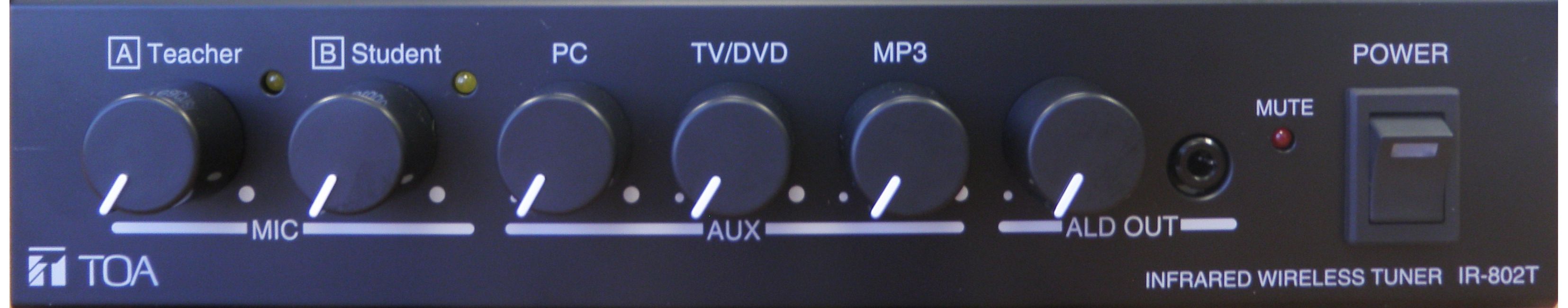

IR-802T Infrared Wireless Tuner

IR-802T

The Infrared Wireless Microphone System using this IR-802T is a PA system designed for use in the school classrooms assuming that their size is about 10 m × 10 m (30 ft × 30 ft). The IR-802T is a 2-channel Infrared Wireless Tuner employing a fixed frequency system with 3 AUX inputs. It is combined with an infrared wireless microphone and an infrared wireless speaker to make up the infrared wireless microphone system. The infrared wireless microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

IR Classroom Brochure

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 120 V AC, 50/60 Hz
(supplied AC adapter must be used)
Power Consumption 8 W (based on UL standards)
Max. 40.8 W (rated output at IR-820SP)
Receiving Frequency Teacher (Channel A): 3.100 MHz
Student (Channel B): 3.350 MHz
Receiver Sensitivity 50 dB or more, Signal to Noise ratio (40 dBμV input, 1 kHz modulation, ±4.8 kHz deviation)
Signal to Noise Ratio Tuner: 60 dB or more (60 dBμV input, 1 kHz modulation, ±4.8 kHz deviation,
A-weighted, Equalization: Centered)
AUX: 75 dB or more (A-weighted, Equalization: Centered)
Tone Squelch Frequency 32.768 kHz
Input AUX PC: line, -10 dB*, 10 kΩ, unbalanced, stereo mini jack (internal mixing)
AUX DVD/TV: line, -10 dB*, 10 kΩ, unbalanced, 2P RCA jack (internal mixing)
AUX MP3: line, -10 dB*, 10 kΩ, unbalanced, stereo mini jack (internal mixing)
Output ALD (Assistive Listening Device): line, -10 dB*, 10 kΩ, unbalanced, monaural mini jack
Speaker: RJ45 (dedicated terminal for IR-820SP connection)
Frequency Response Tuner: 100 Hz - 12 kHz, AUX: 100 Hz - 20 kHz
Equalization High: ±10 dB at 10 kHz
Mid: ±10 dB at 1.3 kHz
Low: ±10 dB at 100 Hz
Feedback Suppression  Valid for mixing out of 2 infrared wireless microphones
Mute Function Mute: 25 V line signals
LED Indicator Power (green) × 1, Infrared Reception (yellow) × 2, Mute (red) x 1
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum, black
Case: Steel plate, black
Dimensions 210 (W) × 46 (H) × 312 (D) mm (8.27 × 1.81" × 12.28")
Weight 1.8 kg (3.97 lb)
Accessory

AC adapter (DC cord length: 1.8 m (5.91 ft)) …1, AC power cord (2m (6.56 ft)) …1,
Volume control cover …6, Removable terminal plug (2 pins) …1
Option Half width blank panel: MB-15B-BK
