ZM-9011 Remote Control Panel

ZM-9011

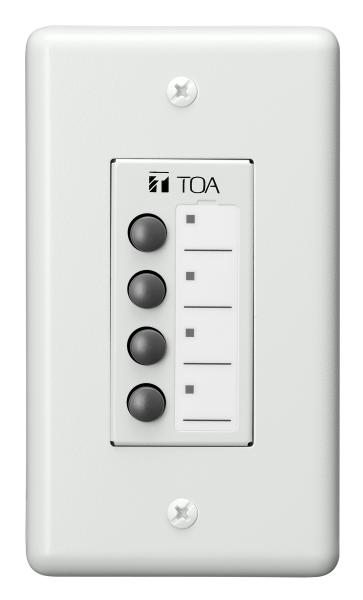

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9011 is a wall mounted remote control panel having 4 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from RC-001T or M-864D)
Current Consumption 50 mA or less
Terminal Removable terminal block (10 pins)
Connection Cable Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Operating Section 4 function buttons
Indicator 4 function indicators (green LEDs)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Surface-treated steel plate, white, paint
Dimensions 72 (W) × 127 (H) × 49.5 (D) mm (2.83" × 5" × 1.95")
Weight 160 g (0.35 lb)
Accessory Box mounting screw (No.6-32UNC × 30) …2,
Box mounting screw (M4 × 30) …2, Panel mounting screw …2,
Removable terminal plug (10 pins) …1
