Intercom

Intercom products help to keep your building, parking garage, school, hospital and any commercial building safe.

System Features:

System configuration by LAN with intuitive software
Master-to-Master and Master-to-Sub station communication
Choice of four wiring configurations: CAT5, 2-core shielded cables, 2 wires or 4 wires
Integration with access control, voice alarm, CCTV and other such systems
Time correction
Operation and stream logs
System diagnosis

Basic Communication Features:

Handset or hands-free conversation
Recall
Redial
Camp on busy
Mic-Off
Remote response
Single-digit dialing
Call transfer
Comprehensive call-forwarding features
Three-party conferencing

Overview

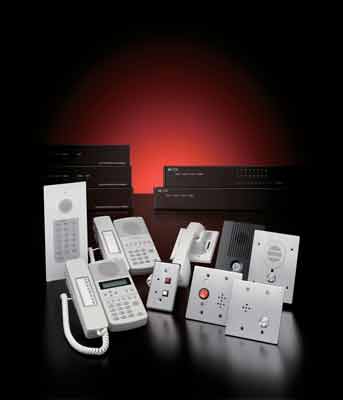

TOA’s unique N-8000 IP Intercom System is an integrated audio communication system that employs packet audio technology over the IP network to achieve fast, accurate communications with optimal security and reliability. Applications range from conversation, paging broadcasting and BGM broadcasting to emergency paging and broadcasting, audio triggering and other security functions.

System scalability
The cost-effective N-8000 System can be configured to a scale that meets users’ specific requirements, however small or large. As few as two stations can be linked in a small system, or up to 192 components can be interconnected to operate as many as 3,072 stations.

Borderless communications

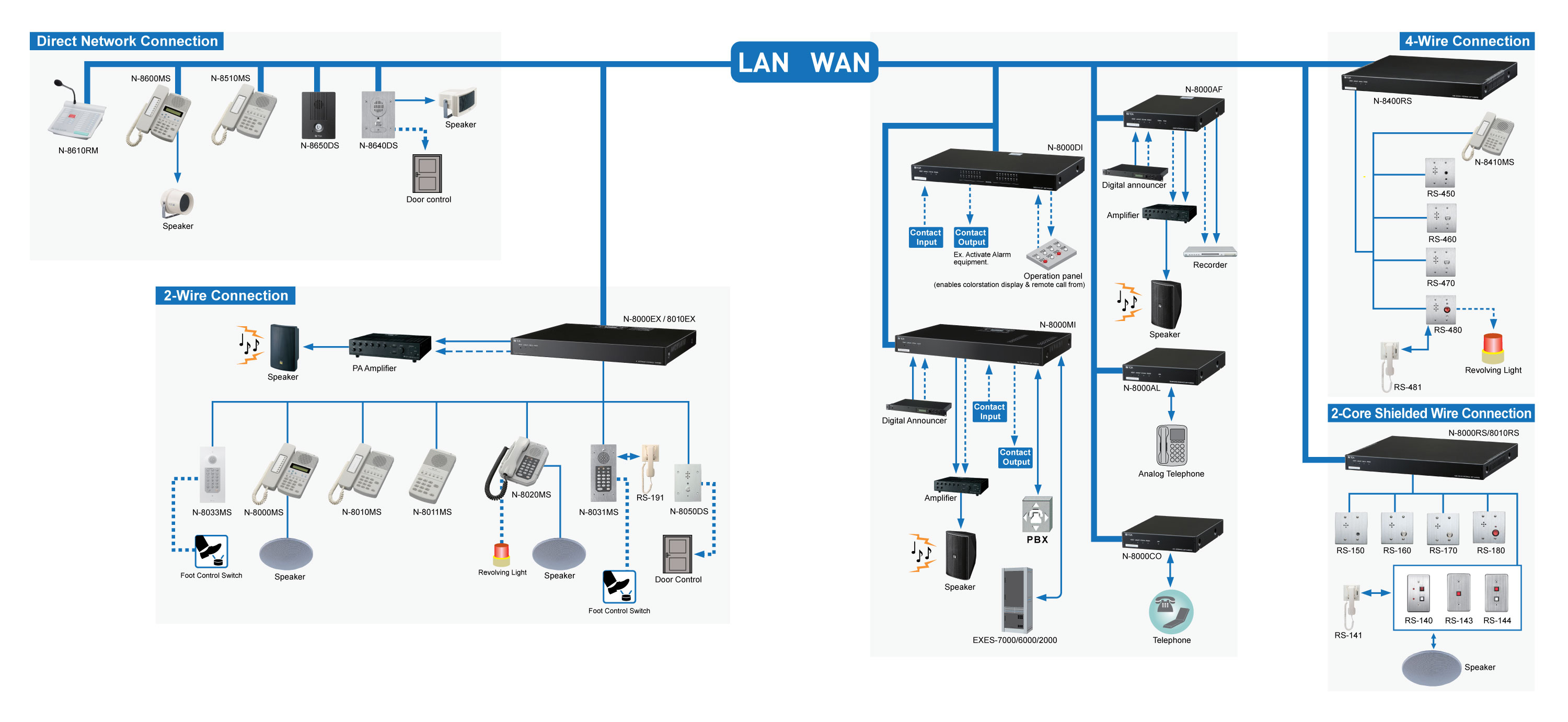

Since the N-8000 System is IP network-compatible, it supports linkage between local areas and other locations worldwide. Centralized PC control with dedicated TOA software enables connection of all exchanges, IP stations and interface units with LAN, WAN and optical fiber networks.

Integrated communications and safety features
Efficient centralized control integrates various systems to handle communications ranging from duplex conversations between stations to paging broadcasts, scheduled broadcasts and BGM broadcasting. The N-8000 System also provides master control for connection to users’ per-existing intercom, alarm, surveillance, door entry/departure authorization and other systems as well as to telephone lines.

Easy installation and maintenance
The surprisingly easy system installation requires a minimum of on-site work, since existing wiring can be used and new components simply plugged in. The dedicated TOA software includes a maintenance application for system status monitoring, troubleshooting and logging as well as for system updating and remote control.

Long-term cost-effectiveness
Since N-8000 software and all calls between stations are free of charge, users enjoy the benefit of significantly lower telephone bills. Overall ownership costs are also reduced by the open-ended system architecture and network scalability permitting individualized configuration.

Superior sound quality
The N-8000 system provides high-quality audio for BGM, paging and recording applications.

Full logging options
The complete menu of operation and stream logging options includes operation verification, voice communications and line supervision logs, all of which can be archived easily for instant recall.

Internal and external system security
The N-8000 System is equipped with both a round-the-clock internal surveillance function to minimize downtime and a proprietary packet audio protocol to prevent wiretapping.

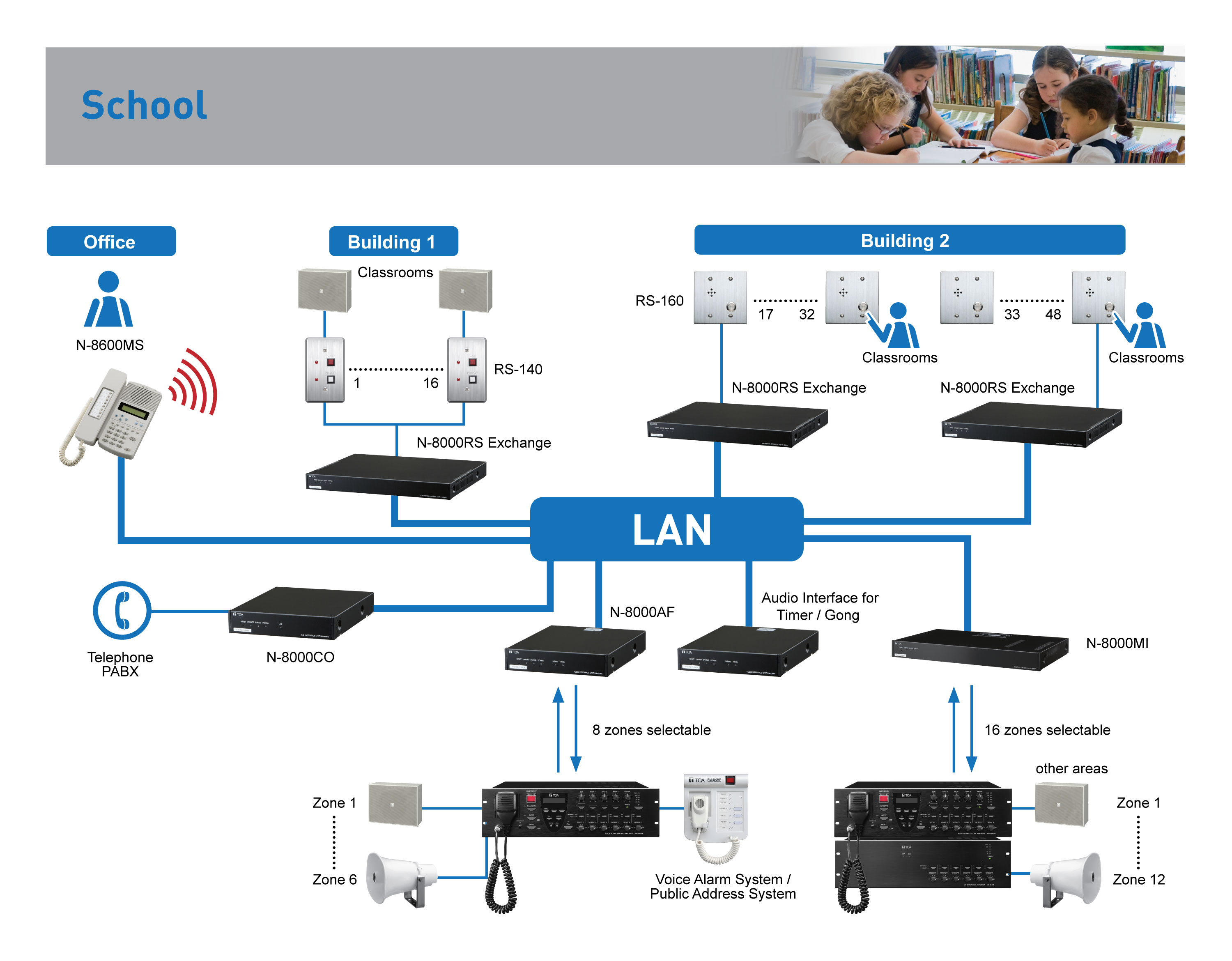

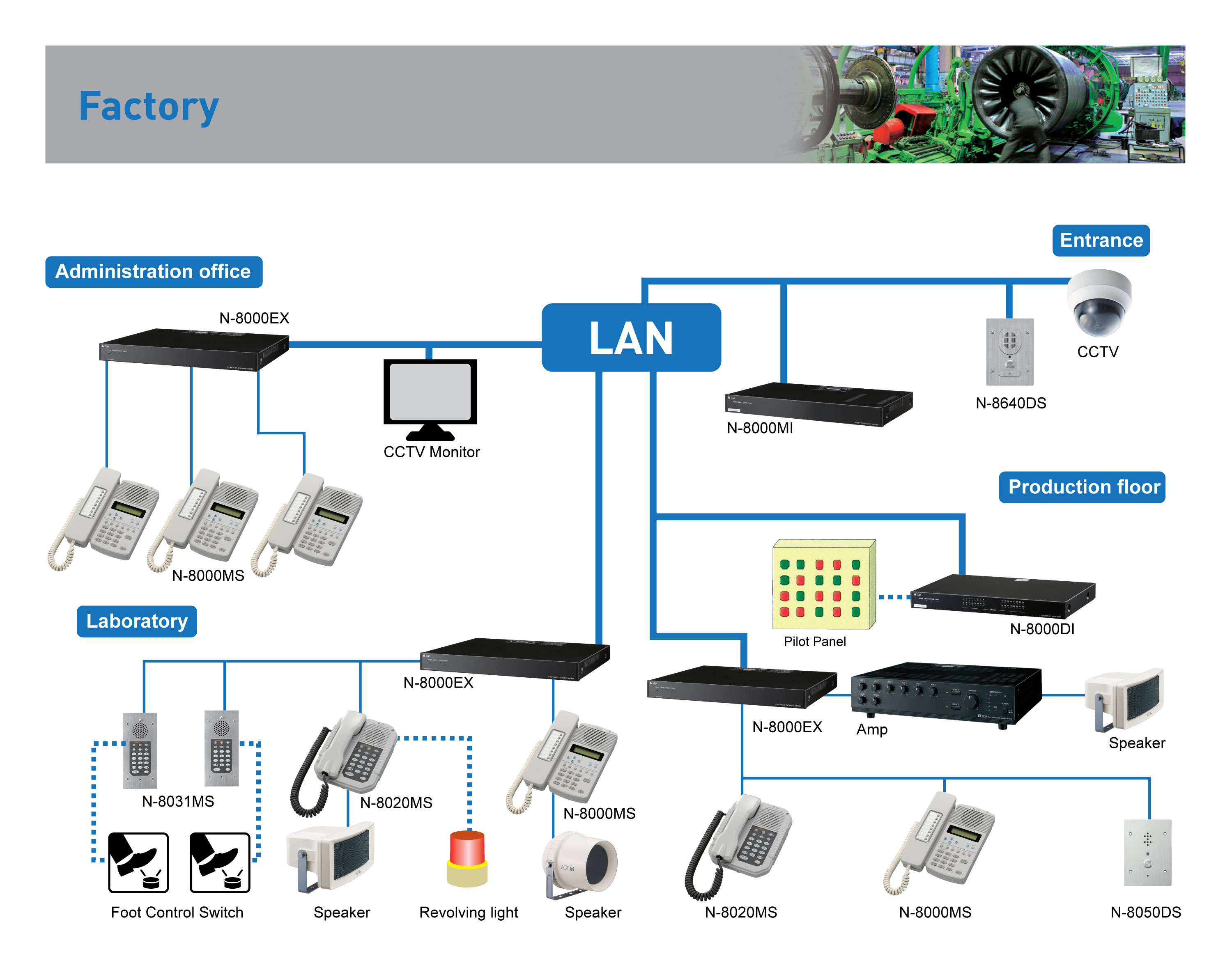

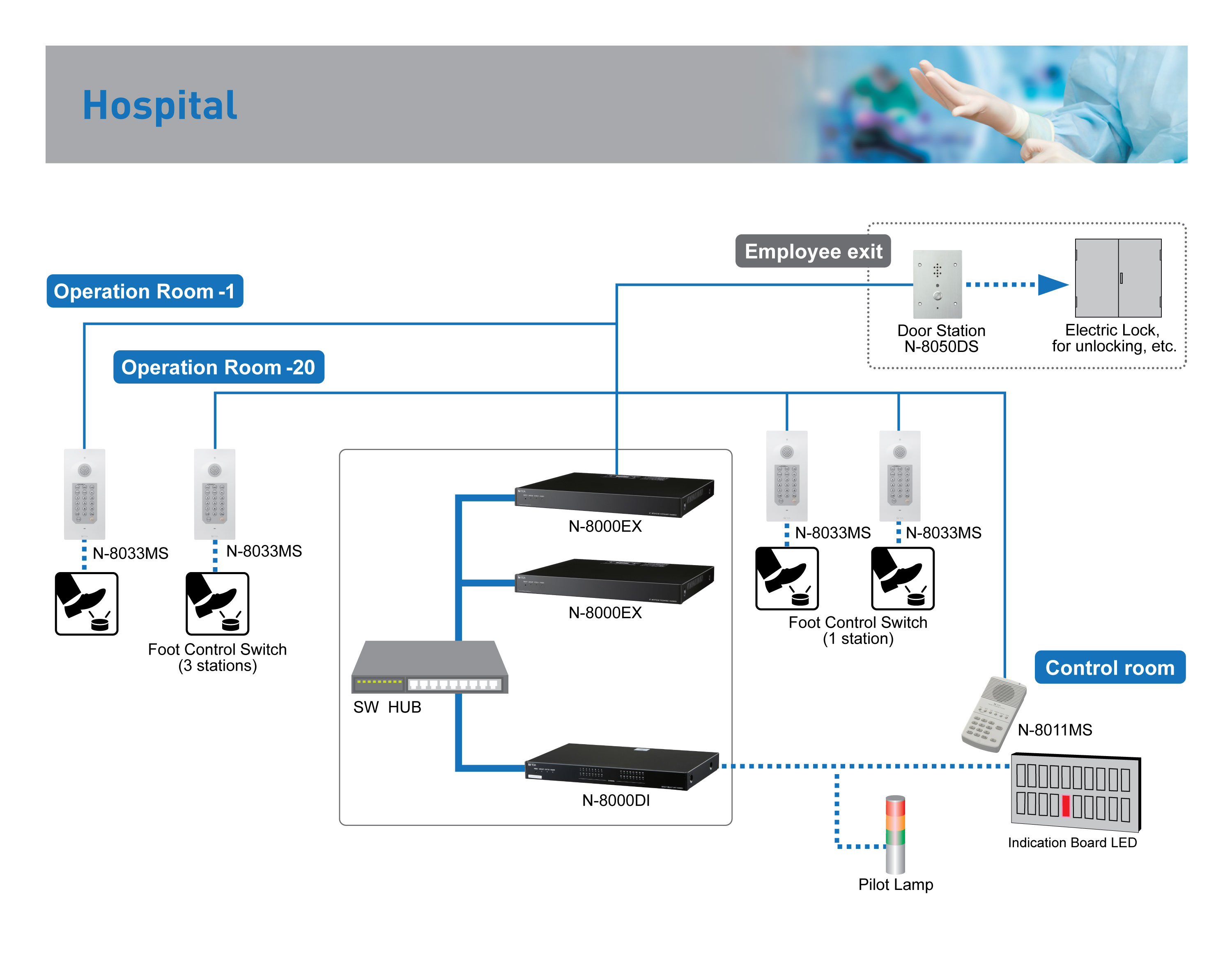

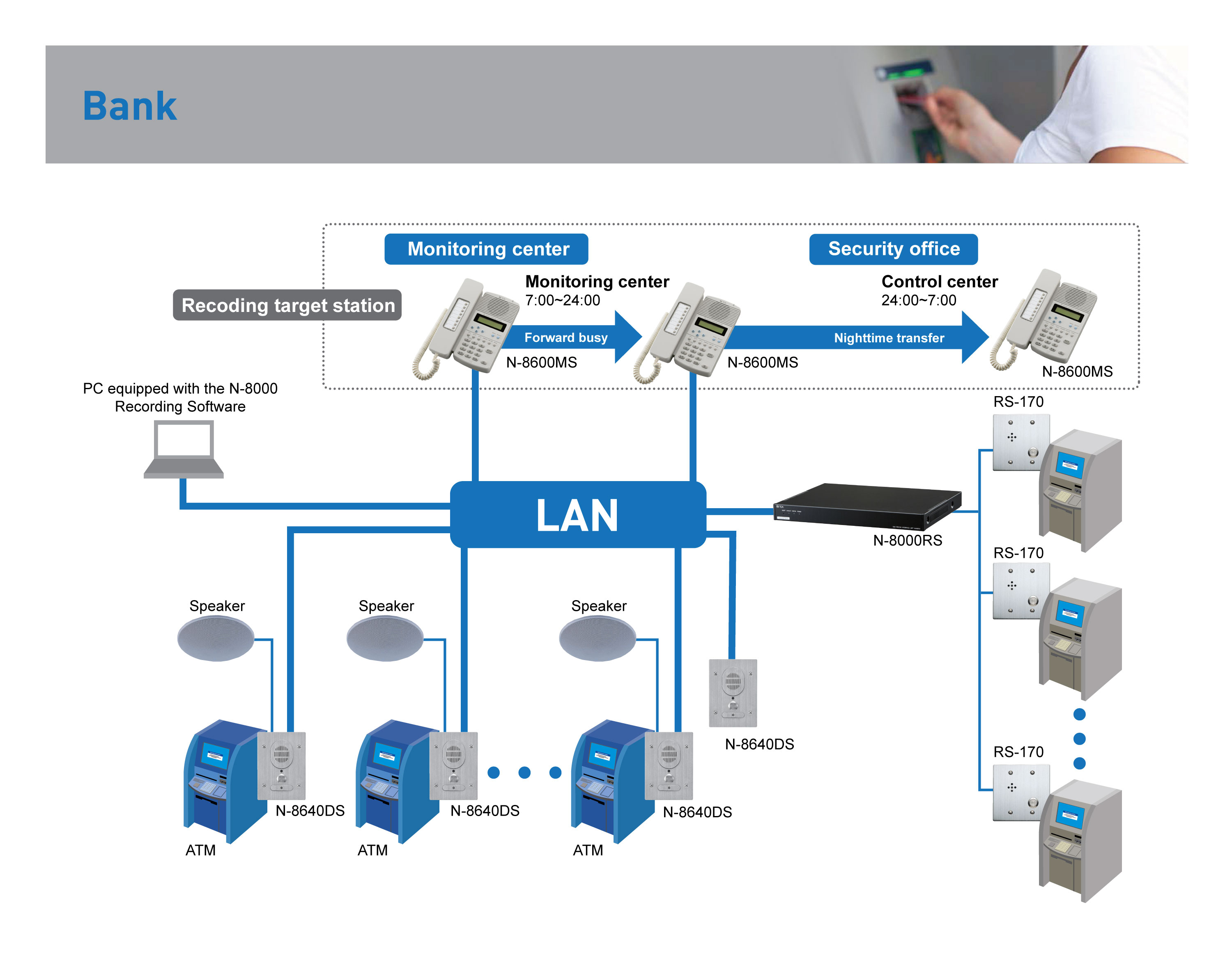

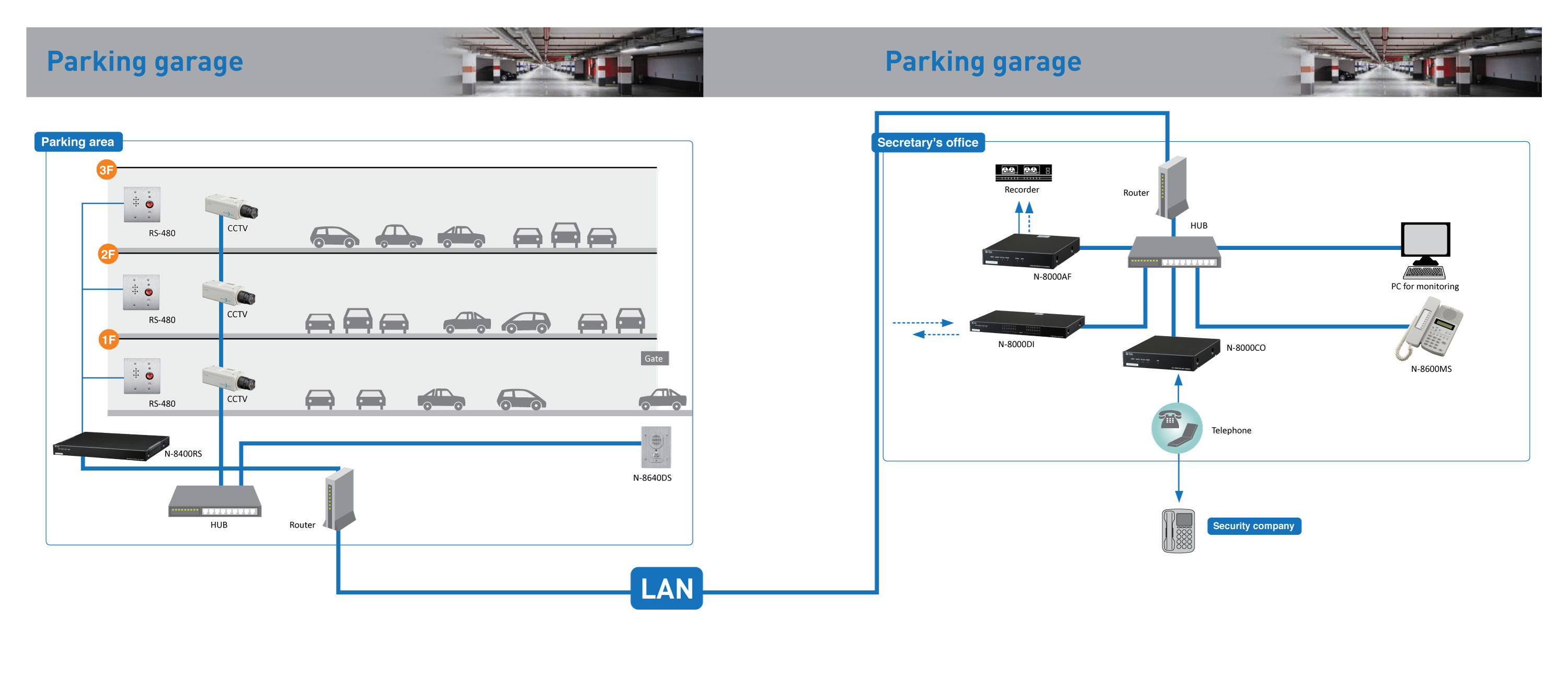

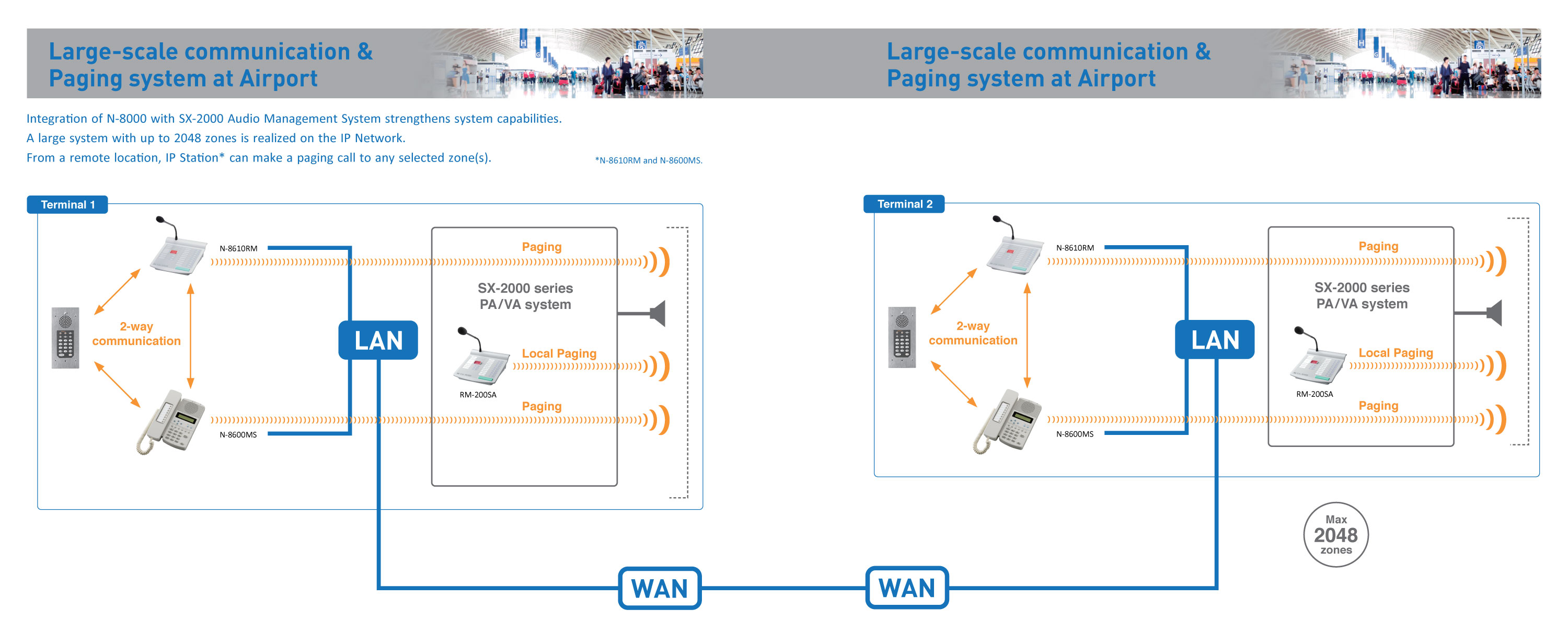

Please note that every application is unique. Our system examples are for reference purposes only. Please contact your Regional Sales Manager to discuss your specific application requirements. sales@toacanda.com or 1-800-263-7639.
