IP-A1SC15

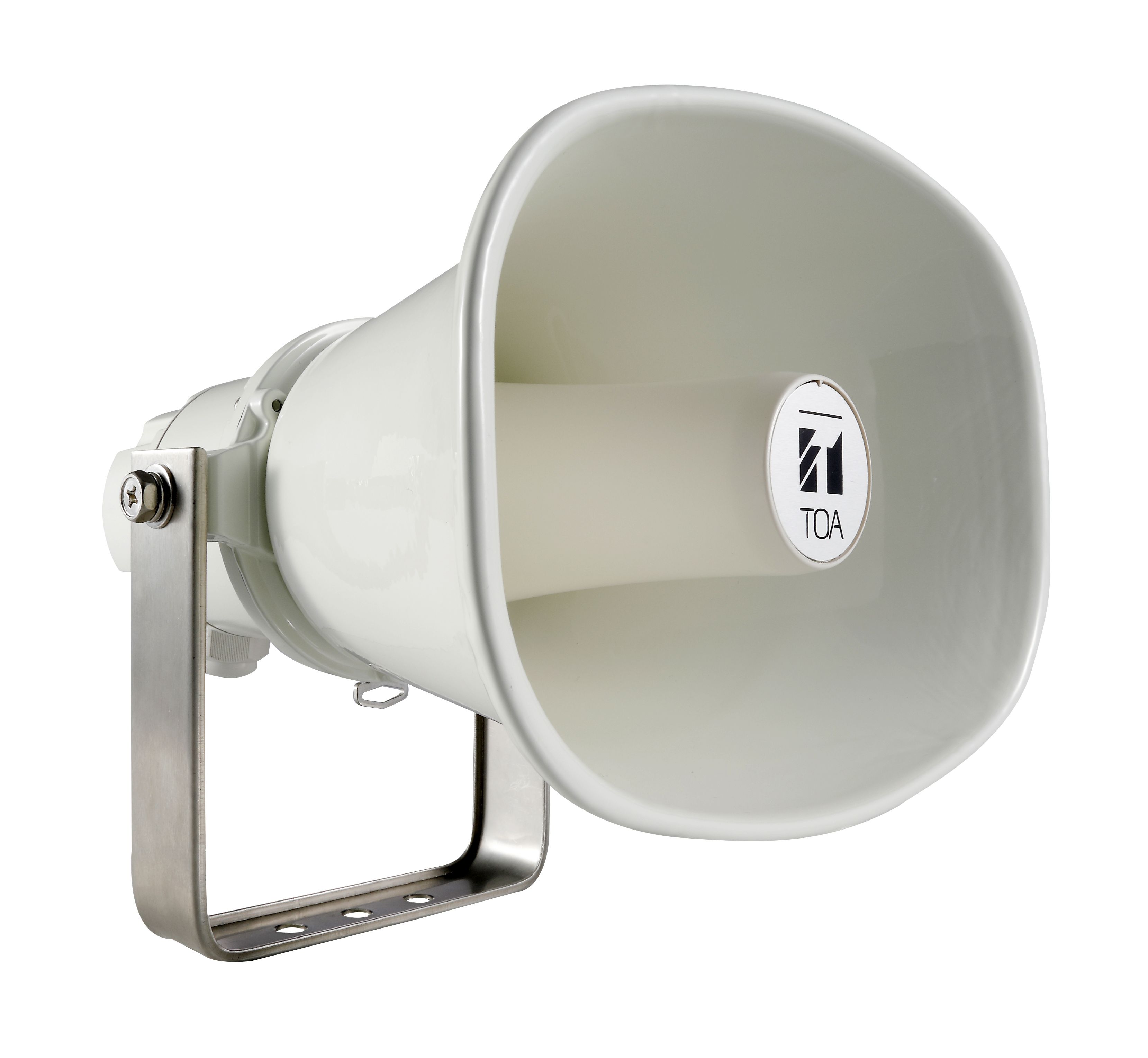

IP-A1SC15, Network Horn Speaker

IP-A1SC15

The IP-A1SC15 Network Horn Speaker is a great addition to any Video Management System with an easy 3 step process. By combining intelligible audio to your video system, the integration help you response immediately with a live announcement. The IP Horn can be detected as a generic ONVIF device by using ONVIF protocol. It also has four different audio broadcasting modes. Prioritize network announcement and prerecorded by using common protocols such as SIP or ONVIF for IP cameras with intuitive browser software.




      New manuals for v2.1.0

 v2.1.0    v1.6..0
(Check what version the horn has. Perform firmware upgrade in order from lowest to  highest version)


Teams Integration w/ IP-A1 (IP-A1PG required)



  Older version manuals

* Asterisk White Paper






QTY: Add to Request for quote Request for quote
Specification
Power Source PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
Frequency Response 280 Hz - 12.5 kHz
Power Consumption 22 W (at PoE+ powered, rated output)
13 W (at PoE powered, rated output)
5 W (IEC62368-1)
Amplifier Rated Output 15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity 112 dB (1 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Maximum Sound Pressure Level 124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz - 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting Mode: PCMU/PCMA/G.722
Multicast Broadcasting Mode: PCMU/PCMA/G.722, Max.10 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Internal Messages Max. 20 messages (Max. recording capacity׃ 80 MB)
Supported file formats
WAV file׃ 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file׃ 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat count׃ 1 - 10 times
Interval time׃ 0 - 30 sec
Trigger׃ Control Input or Remote API (HTTP)
Network I/F 100BASE-TX, MDI/MDI-X, RJ-45
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261)
Control Input 2 channels, no-voltage make contact inputs, open voltage׃ 5 V DC, short-circuit current׃ 2 mA or less,
removable terminal block (3 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less,
removable terminal block (3 pins)
Indicator LAN LINK/ACT (green), STATUS (orange)
Dust/Water Protection IP66
Operating Temperature -30 °C to +55 °C (-22 °F to +131 °F)
Operating Humidity 90 % RH or less (no condensation)
Finish Horn flare and body׃ Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn׃ ABS resin, off-white (RAL 9010 equivalent)
Rear cover׃ PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts׃ Stainless steel
Dimensions 222 (W) X 211 (H) X 276 (D) mm (8.74" X 8.31" X 10.87")
Weight 1.4 kg (3.09 lb)
Accessory Rear cover ···1, Removable terminal plug (3 pins) ···2
Option Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B
