MP-16

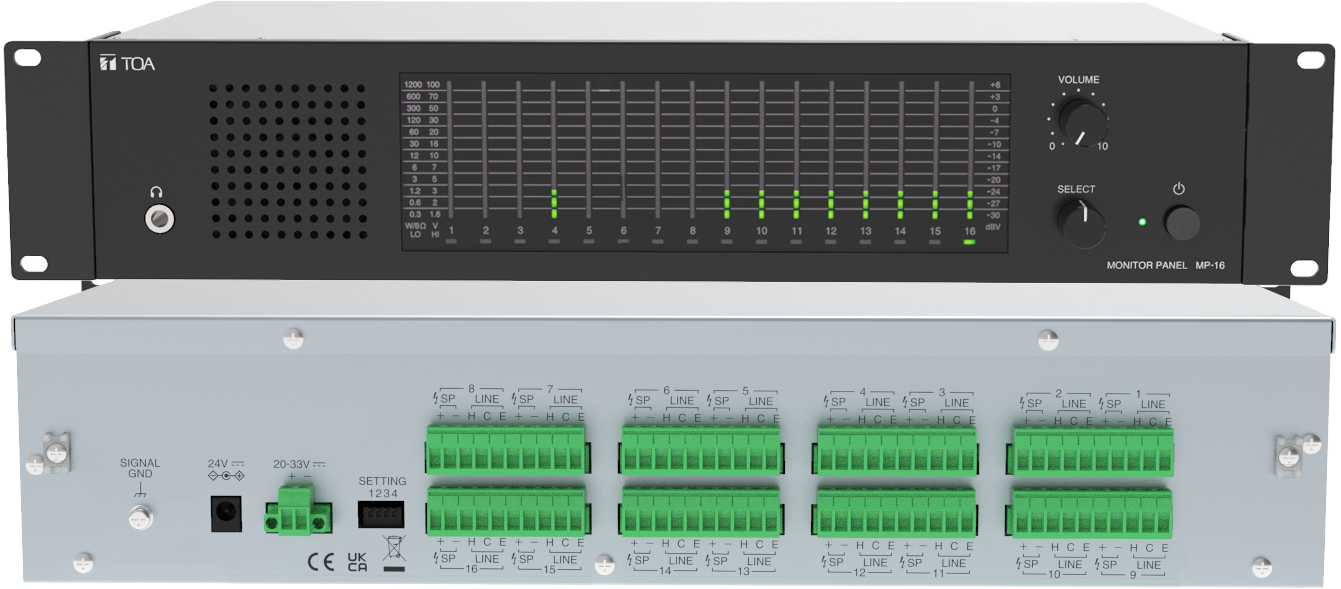

MP-16 Audio Monitor Panel

MP-16

The MP-16 is a 16-channel audio monitor panel, which can be mounted on an EIA standard equipment rack (2 unit size). It allows monitoring 25/70/100 V high impedance speaker line, low impedance speaker line and line level audio signals by LED level meters. One of the 16 channels audio can be monitored with a built-in speaker or an optional headphone.



QTY: Add to Request for quote Request for quote
Specification
Power Source Supplied from an external 24 V DC (20-33 V) power supply,
Removable terminal block (2 pins) or AC adapter AD-246 (option)
Max. Current Consumption 520 mA
Input High impedance speaker: Max. 100 V
Low impedance speaker: Max. 1200 W ( 8 Ω)
Line: +6 dB ( *1)
Output  Speaker Output: Max. 3 W
Headphone Output: 8 Ω
Level Display  Meter: 12-segment LED meter x16
Level Indications: 1.6 - 100 V ( High impedance speaker)
0.3 - 1200 W (Low impedance speaker)
-30 to +6 dB (*1) (Line)
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 90 %RH or less ( no condensation)
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Case: Surface-treated steel plate
Dimensions 482 (W) x 88.4 (H) x 240.8 (D) mm (18.98" x 3.48" x 9.48")
Weight 3.9 kg (8.6 lb)
Accessory Removable terminal plug (10 pins, input ter minal) ... 8,
Removable terminal plug (2 pins, power supply) ... 1,
Rack mounting screw ... 4
Option AC adapter: AD-246
