TOA Canada - IP-A1 Series

IP Network Audio Management System

IP-A1 Series

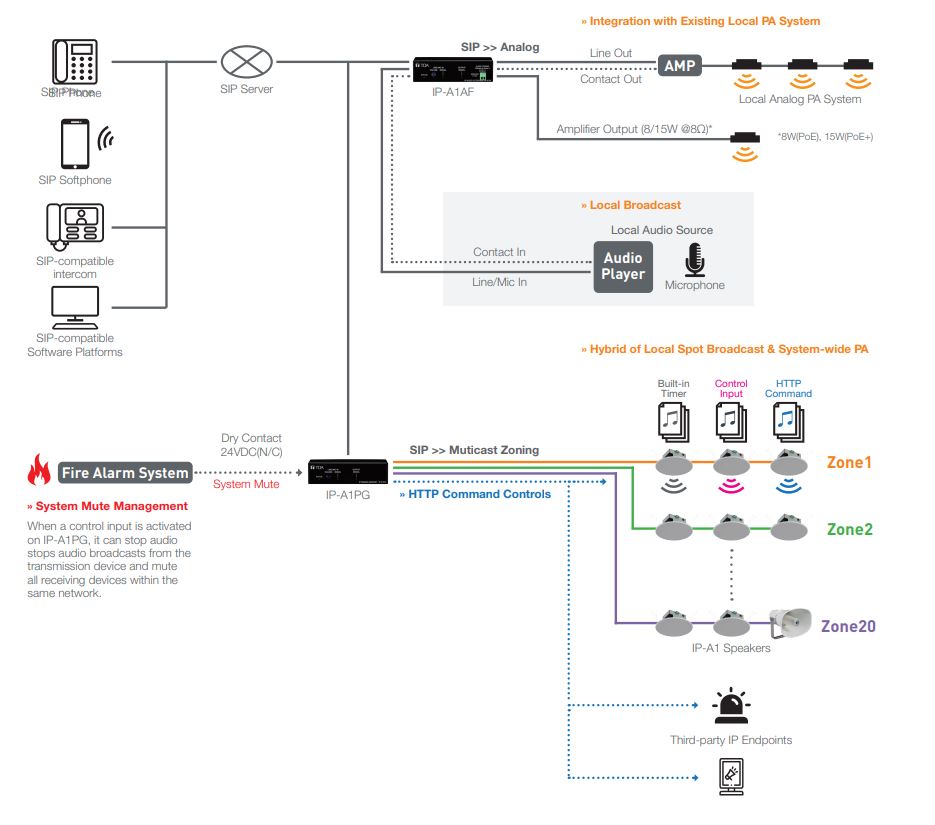

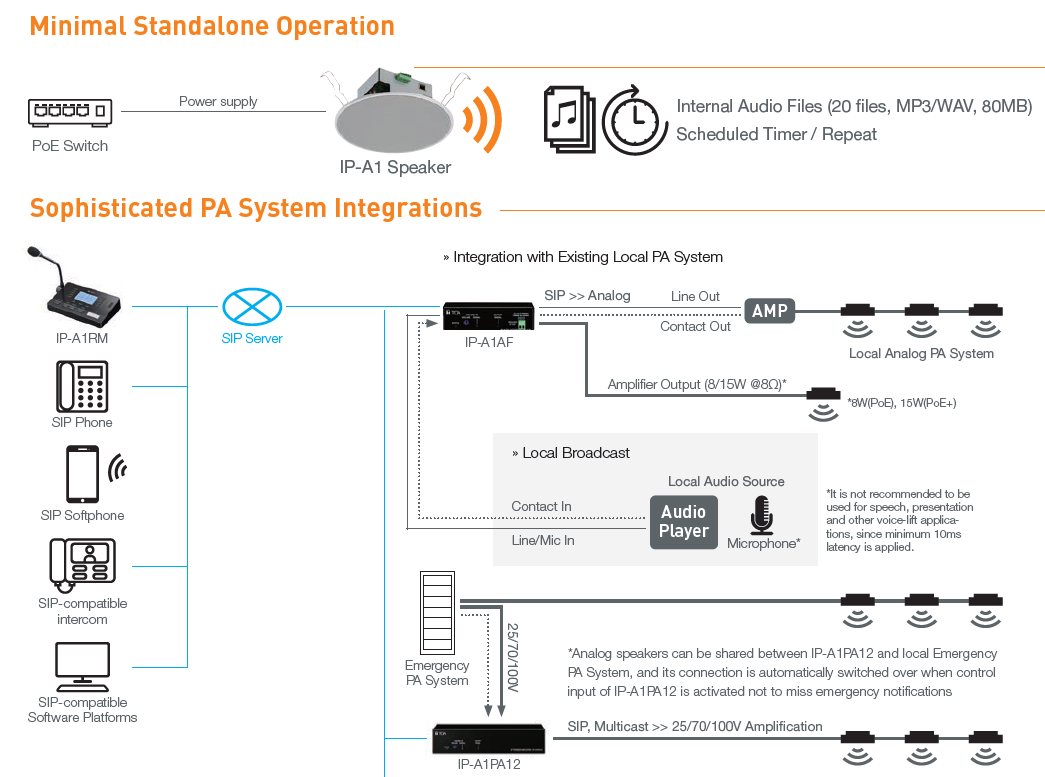

Our new IP-A1 paging system is a server less audio management system that utilizes SIP protocol and devices.
Capable of flexible configurations to suit project requirements, it also offers system expansion if needed.
The series is a cost effective with a lower labour and material cost and simplified cabling structure. The IP-A1 is
capable of integrating with other building services and subsystems.

The IP-A1 Series offers several functions that include;

• Working with local amplifiers
•  Operates with Lo-Z speaker and Hi-Z 100V/70V/25V
•  Prioritizing of content to allow override
•  P2P and group broadcasting
•  As a mini amplifier for local broadcasting

What?	When?	Where/Who?	How?
Content	Trigger	Zoning	Knowhow

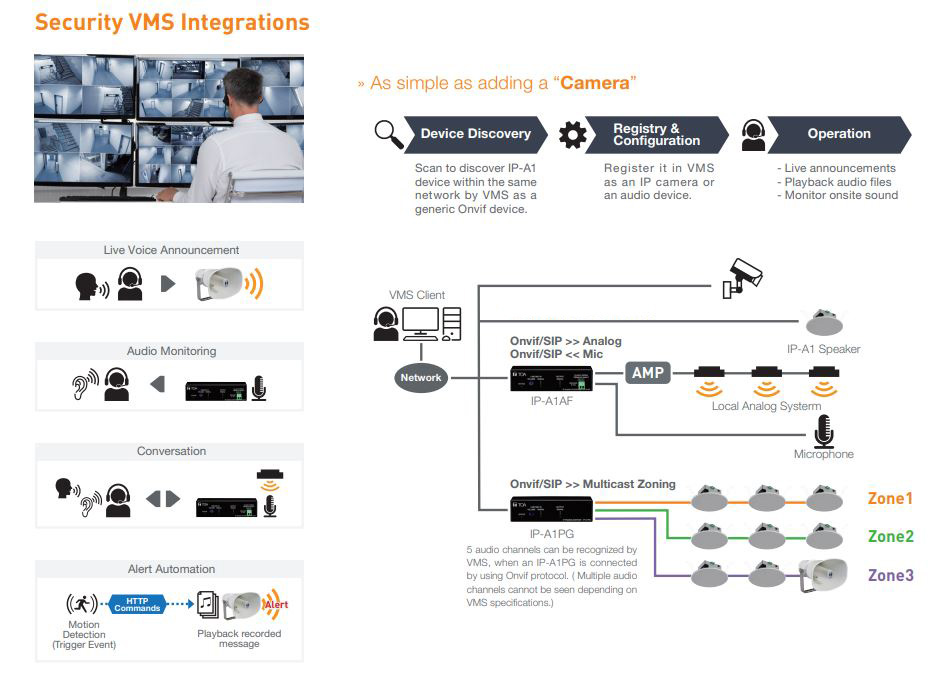

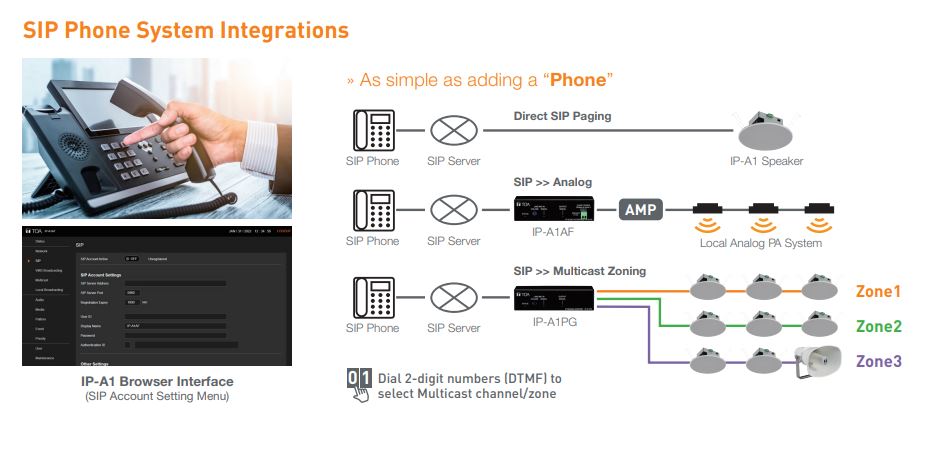

•Live Messages •Pre-recorded Messages •Alarm Messages	• IoT Sensor • Signal Sensing • HTTP Command	• Individual Speakers • Areas/Zones • Group of Zones	・　Paging Microphone ・　SIP Phone (via SIP server) ・　VMS integration (ONVIF) With Priority and volume control

		Line output and control output allow connection to local amplifier 15W low impedance amplifier (8Ω) Line or Mic input enabled Internal Sound Message: 20 (Max 80MB)

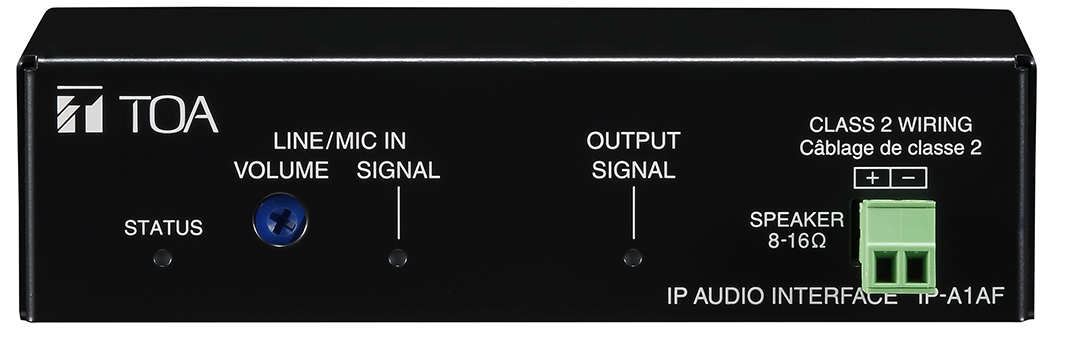

IP-A1AF - IP Audio Interface

		Converts SIP/ONVIF/AUX audio to multicast audio streams Scheduler for Audio file broadcasting Priority control of the broadcaster's device (Paging Mic or SIP phone) Event broadcasting by contact input AUX input for Background Music

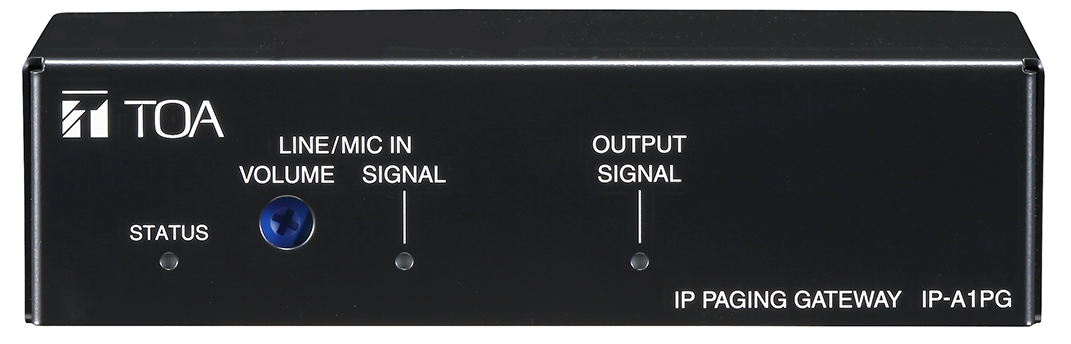

IP-A1PG - IP Paging Gateway

		Speaker output：8W Build-in sound source：20 (Max. 80MB） Contact input：2 Contact output：1

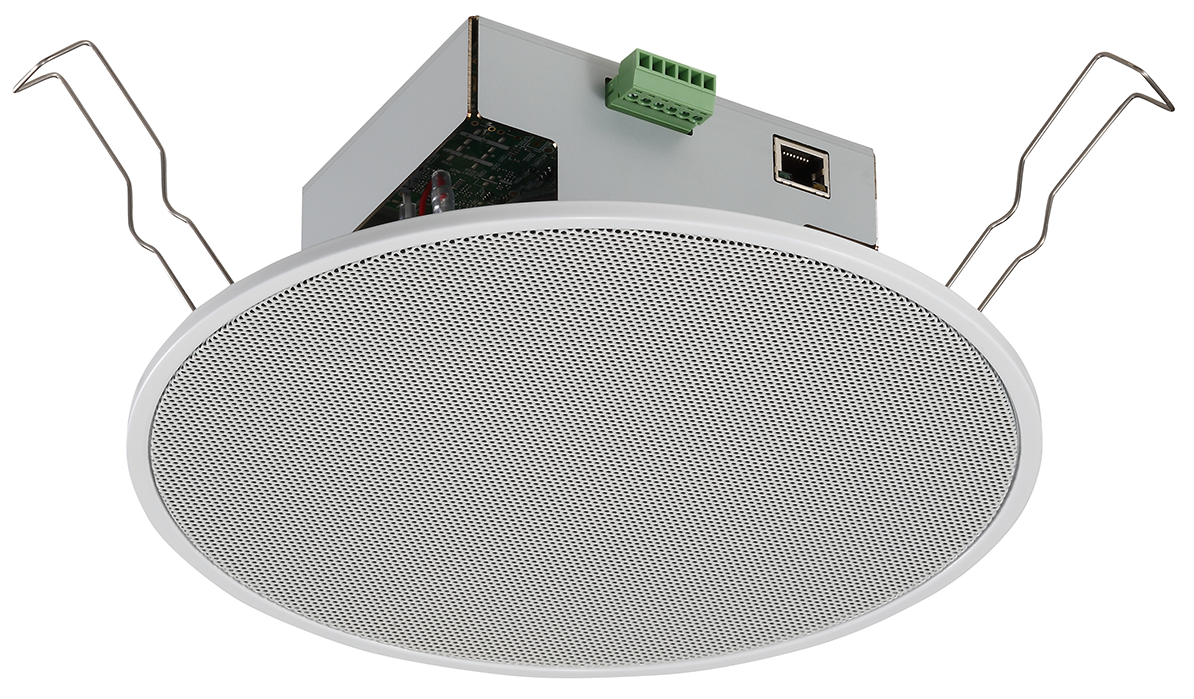

IP-A1PC238 - Ceiling Speaker

		Speaker output：8W Build-in sound source：20 (Max. 80MB） Contact input：2 Contact output：1 Audio Output 1

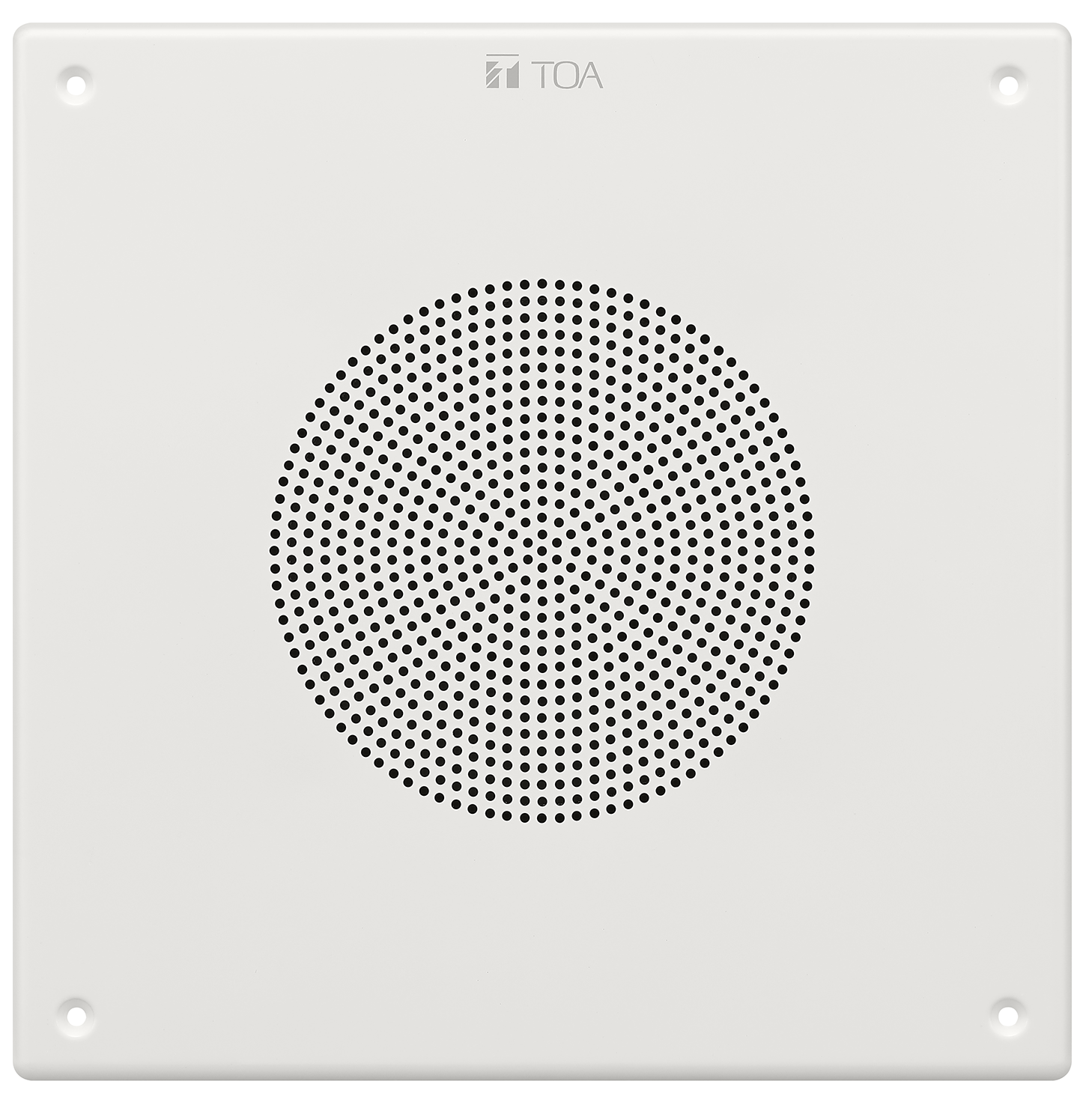

IP-A1PC580S- Ceiling Speaker

		Speaker output：8W Build-in sound source：20 (Max. 80MB） lAudio Input : 1 (LINE/MIC) Contact input: 2 Contact output：1 Audio Output 1

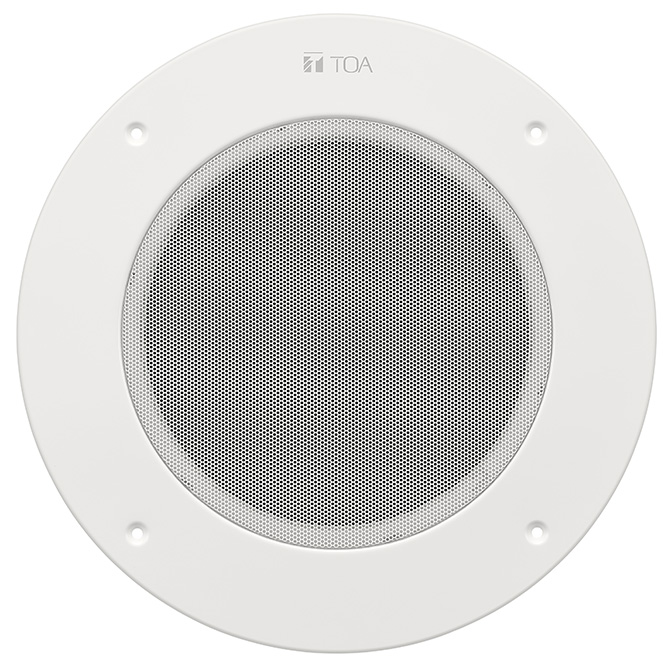

IP-A1PC580R- Ceiling Speaker

		Max SPL is 124 dB at 15W Powered with PoE+ Built-in sound source：20 (Max. 80MB） Multiple broadcast modes

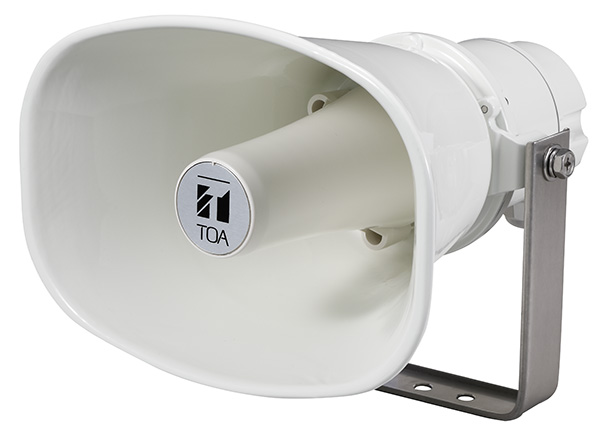

IP-A1SC15 - Network Horn Speaker

		• 10 function-assignable keys to initiate broadcasts or controls • GUI calendar scheduler function (up to 2,000 settings) • System mute function to mute all broadcasts • 1 AUX audio input (LINE/MIC selectable, phantom power On/Off) • 2 control inputs, 1 control output and 1 mute contron input

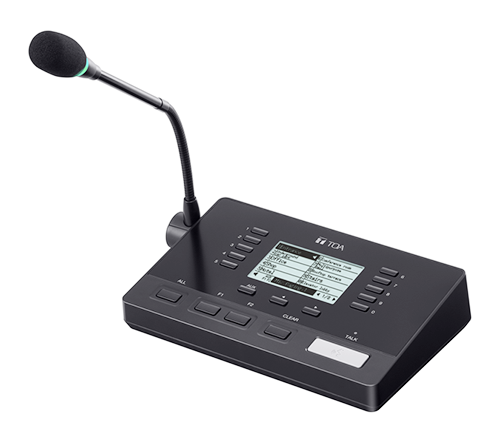

IP-A1RM - Remote Microphone

		• Audio accessory unit to be used in conjunction with IP-A1 series devices for having two-way conversations or audio monitoring • Omni-directional electret condensor microphone • Momentary type push switch to initiate a call • Indicator lights during control input is being triggered
IP-A1MP - Microphone Panel

		• 12W amplifier to drive 100/70/25V line speakers • Receive SIP audio, ONVIF Audio and Multicast • Local broadcast using internal audio files or local audio source • External amplifier input (100/70/25V) to share speakers between the built-in amplifer and external PA amplifier to be switched over • 1 audio input (LINE/MIC selectable, phantom power On/Off)

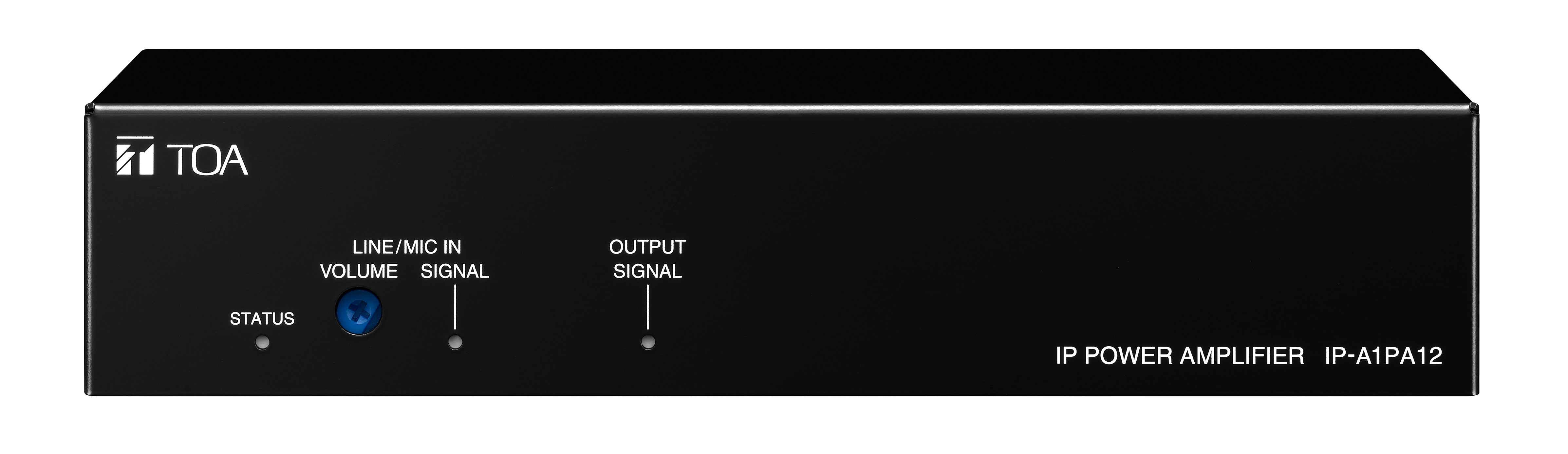

IP-A1PA12 - IP Power Amplifier

		• Multiple broadcast modes • PoE/PoE+ powered • Bi-directional communication with built-in internal mic • Audio file storage/ playback program
IP-SC15MC Network Horn Speaker with Microphone

Examples of projects using IP-A1 Paging System
